25210H

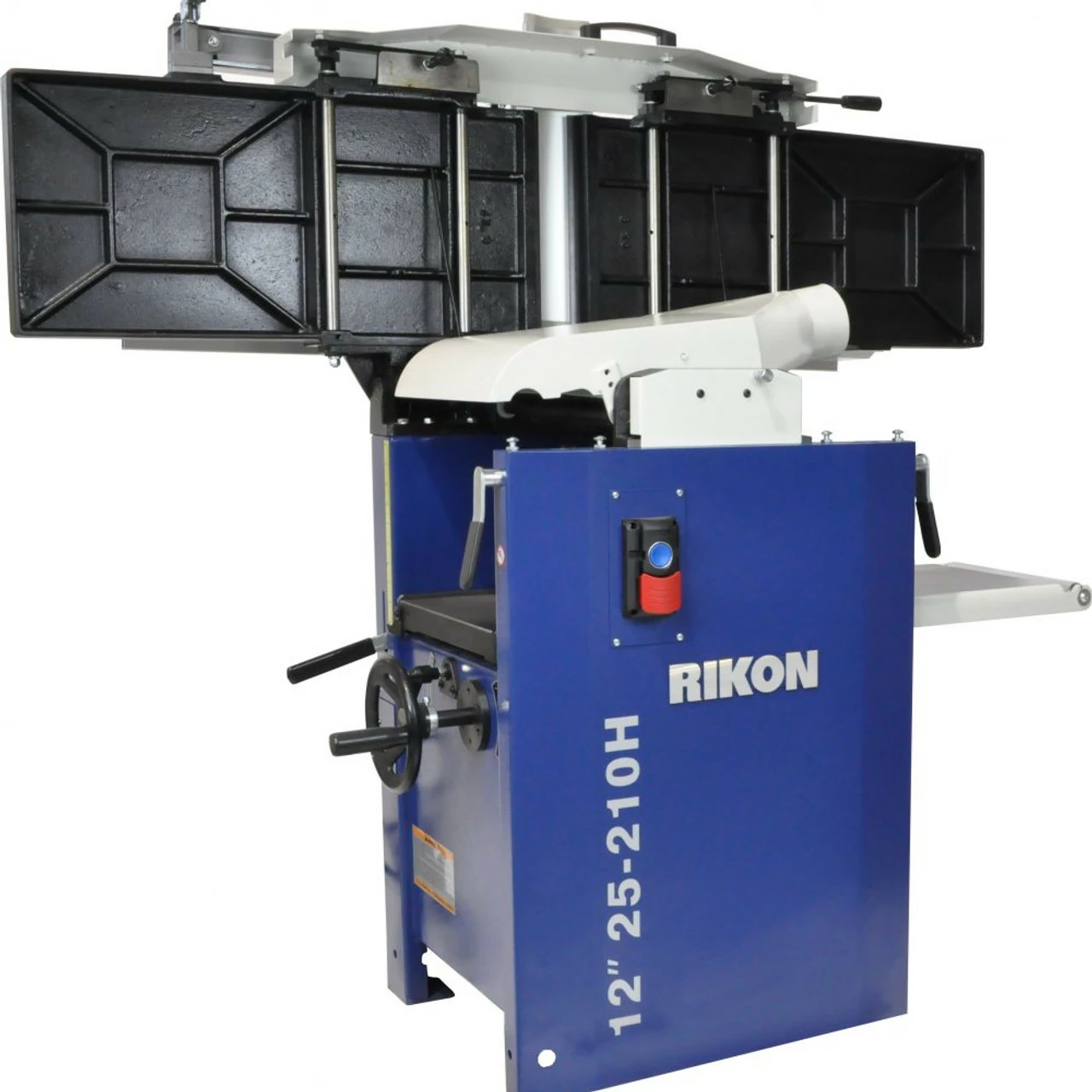

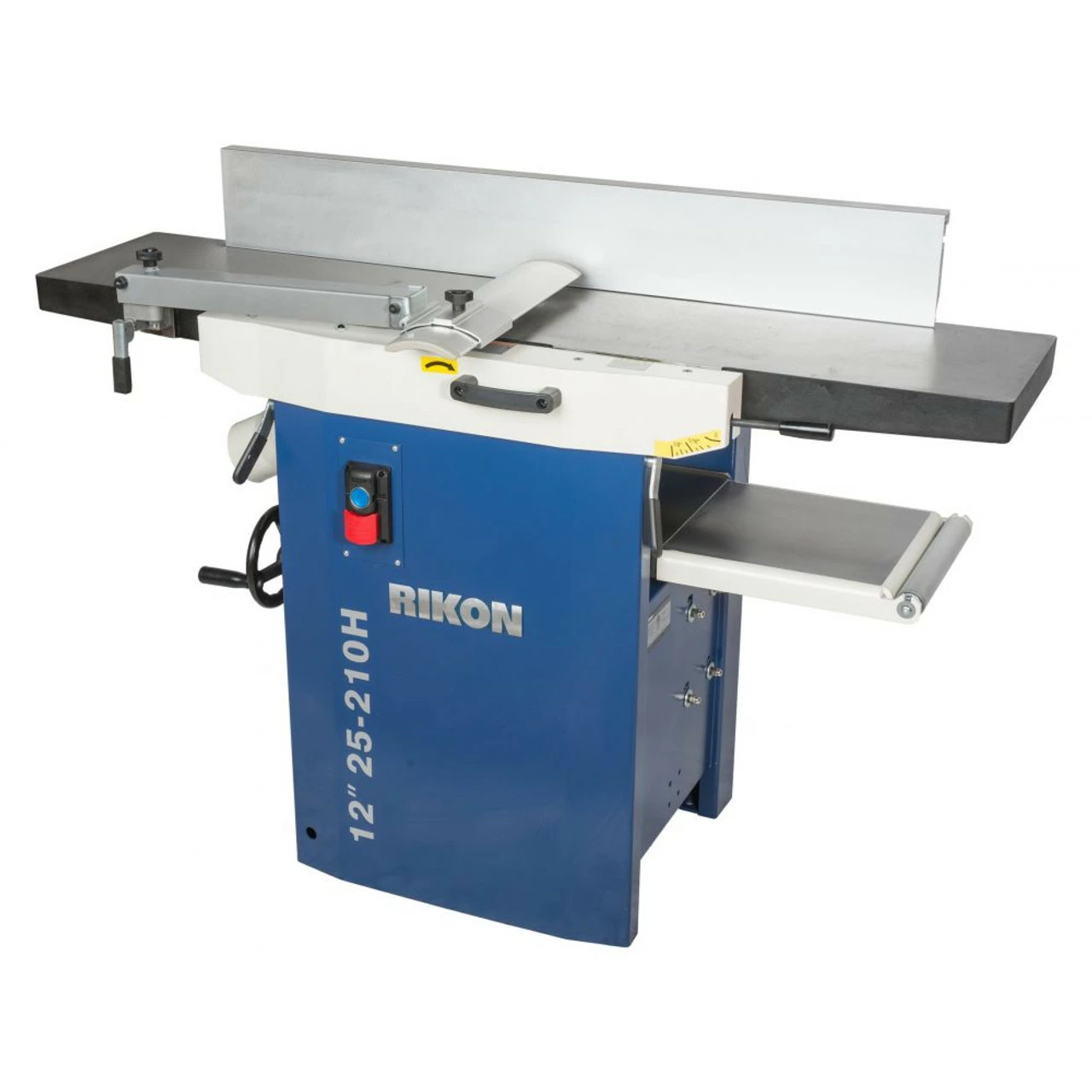

12″ Planer / Jointer #25-210H are equipped with a larger 12″ cutter head and powerful 3HP motors that make quick work in milling the hardest, or widest rough-sawn lumber. A favorite of production shops, the jointer and planer tables are made of heavy, cast iron and machined smooth for efficient movement through the cutters. Unique, one-piece jointer tables easily lift up and out of the way for planer use, or to work on the cutter head. The #25-210H has a 4-row, helical cutter head with 56 four-sided, carbide insert cutters. 220V motors require 3-wire electrical plugs to match your electrical receptacles. (SPECIAL ORDER PLEASE ALLOW 2 TO 3 WEEKS FOR DELIVERY.)

Features:

Powerful 3 HP Motor

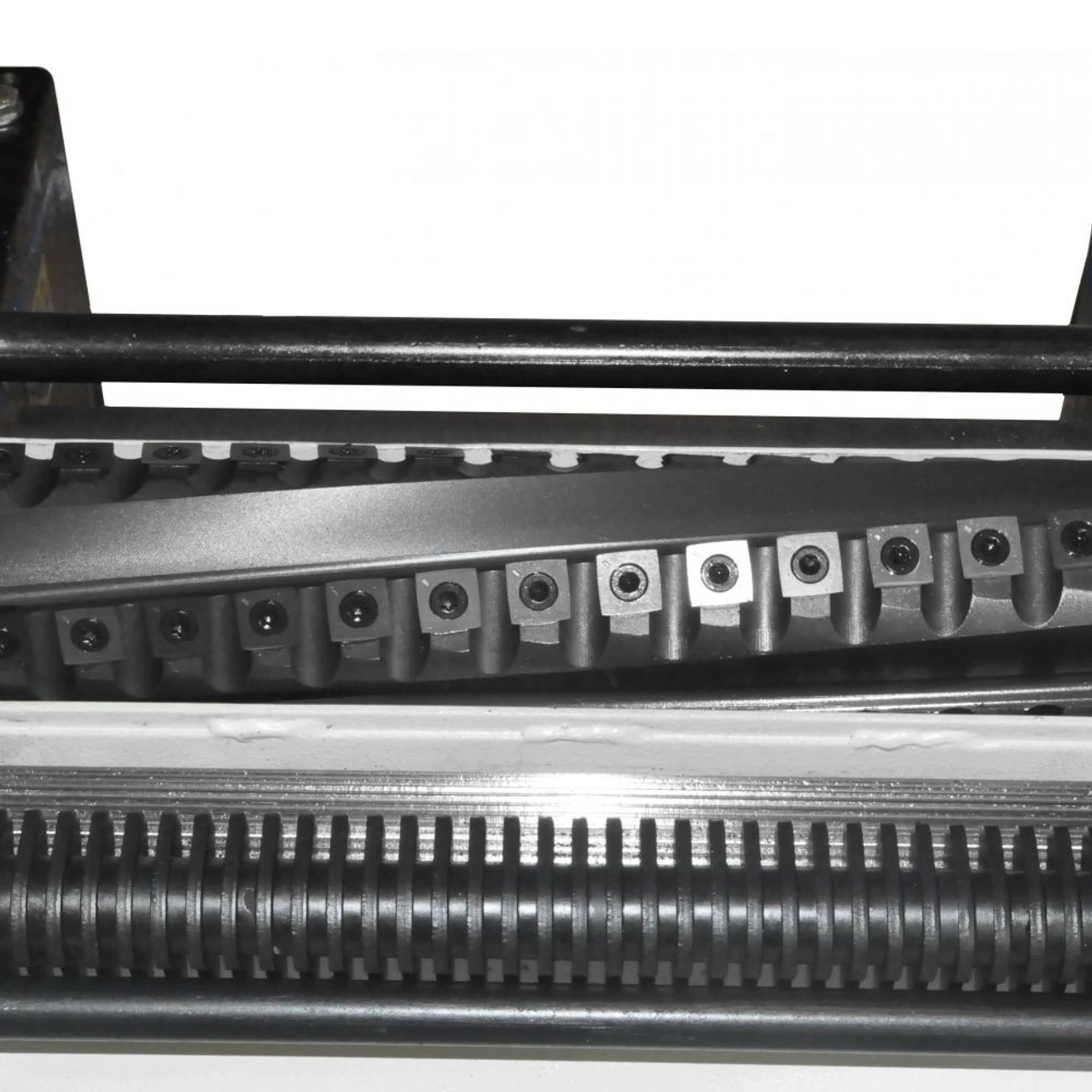

4 Row Helical Head Design
Precision Cast Iron Tables
Heavy Duty Design
Rubber Outfeed Rollers
Dual Planer / Jointer Combination

Specifications:

Motor
Horsepower: 3 HP
Amps: 12 Amps
Volts: 220V, 60 Hz
RPM: 3,400

Cutterhead

Speed: 5,000 RPM
Number of Carbide Inserts: (4 Sided) 56
Carbide Insert Size: 15mm x 15mm x 2.5mm
Number of Insert Rows: 4
Cuts Per Minute: 20,000 CPM
Diameter: 2-3/4″

Fence

Size: 6″ x 43″
Tilts: 0° to 45°
Positive Stops: 90° and 45°

Planer

Maximum Cutting Width: 12″
Maximum Cutting Height: 7-7/8″
Maximum Depth of Cut: 1/8″
Feed Speed SF/MIN: 23
Table Size: 21-3/8″ x 12-1/16″

Jointer

Maximum Cutting Width: 12″
Maximum Cutting Depth: 1/8″
Table Size: 12-1/2″ x 55-1/2″
Table Height from Floor: 33-1/2″

Overall

Height: 39-1/2″
Width: 22-1/2″
Depth: 55-3/4″
Base Size: 21-1/4″ x 19-1/4″
Dust Port: 4″
Net Weight: 224 Kg (494 lbs.)
Shipping Weight: 269.5 Kg (594 lbs.)
Shipping Carton: 58-3/8″x22-1/2″x44-1/4″
Warranty: 5 years (residential) 2 Years (commercial, industrial, or educational.)
