CX20HC

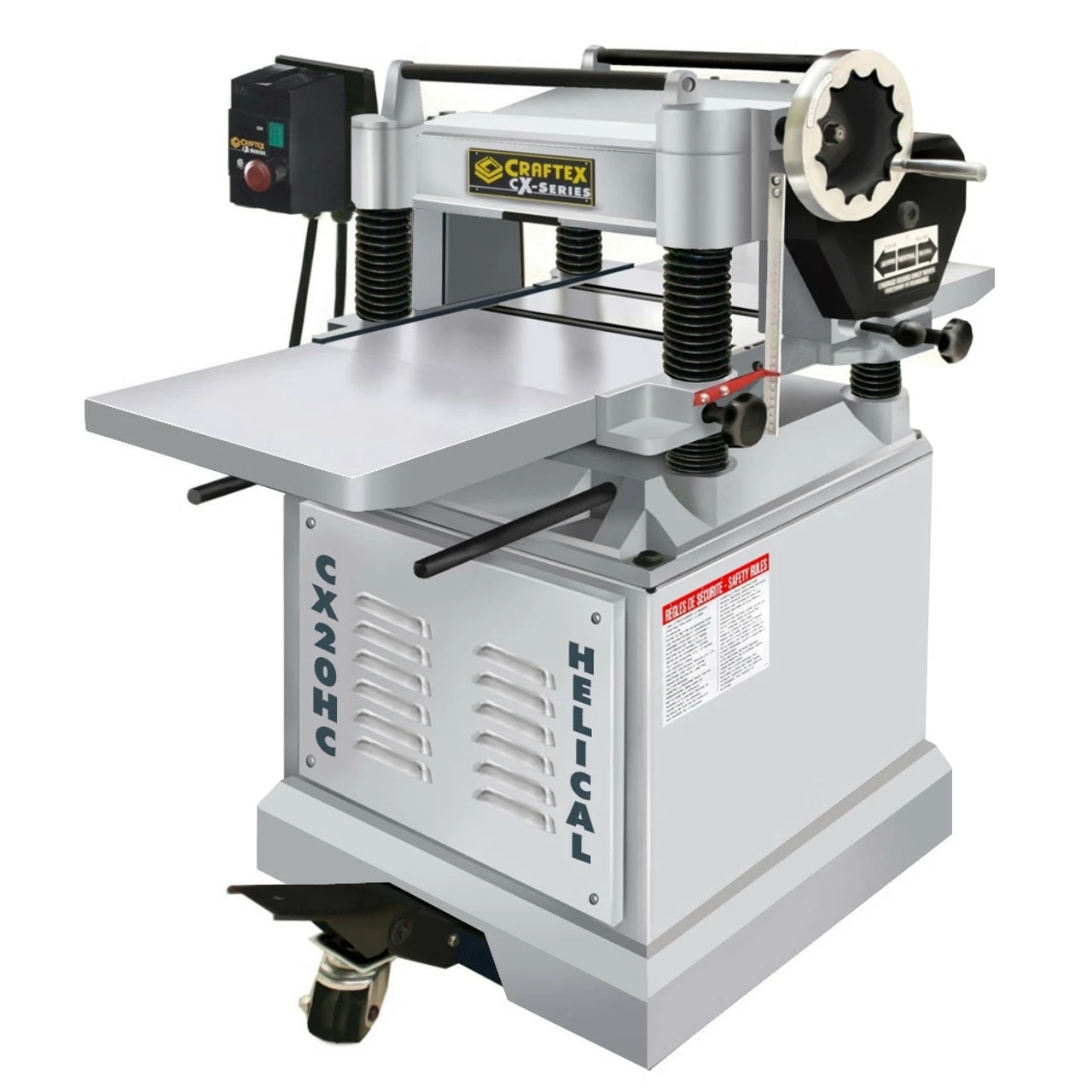

20″ Planer with Helical Cutterhead – Craftex CX-Series

The CX20HC is equipped with a Helical Cutterhead which means it operates more like a sheer or skew cut taken with a hand plane, as the cutters are positioned at an angle to the feed rate and this shearing action provides a quieter, smoother and superior finish compared to the standard knives and spiral cutterheads.

This machine is built in the same factory as our CX20SC (20″ Spiral Cutterhead Planer), and after testing both units side by side, the Helical Cutterhead provided a smoother and superior finish compared to the Spiral Version.

This planer will tackle just about any project you throw at it, all day, everyday. Features on this unit include a powerful 5HP motor, precision ground cast iron table and full cast iron extension wings, integrated mobile base for ease of mobility and overall heavy duty construction. Enjoy the power, mobility and stability of a heavy duty planer with the helical cutterhead in this 20″ planer.

Like all CX-Series machines, this unit features powder coated paint and a full 3 year warranty.

FEATURES

Five Row Helical Cutterhead with 100 Cutters
Carbide Cutters are Made in Germany
Powerful 5HP Motor
Precision Ground Cast Iron Extension Wings

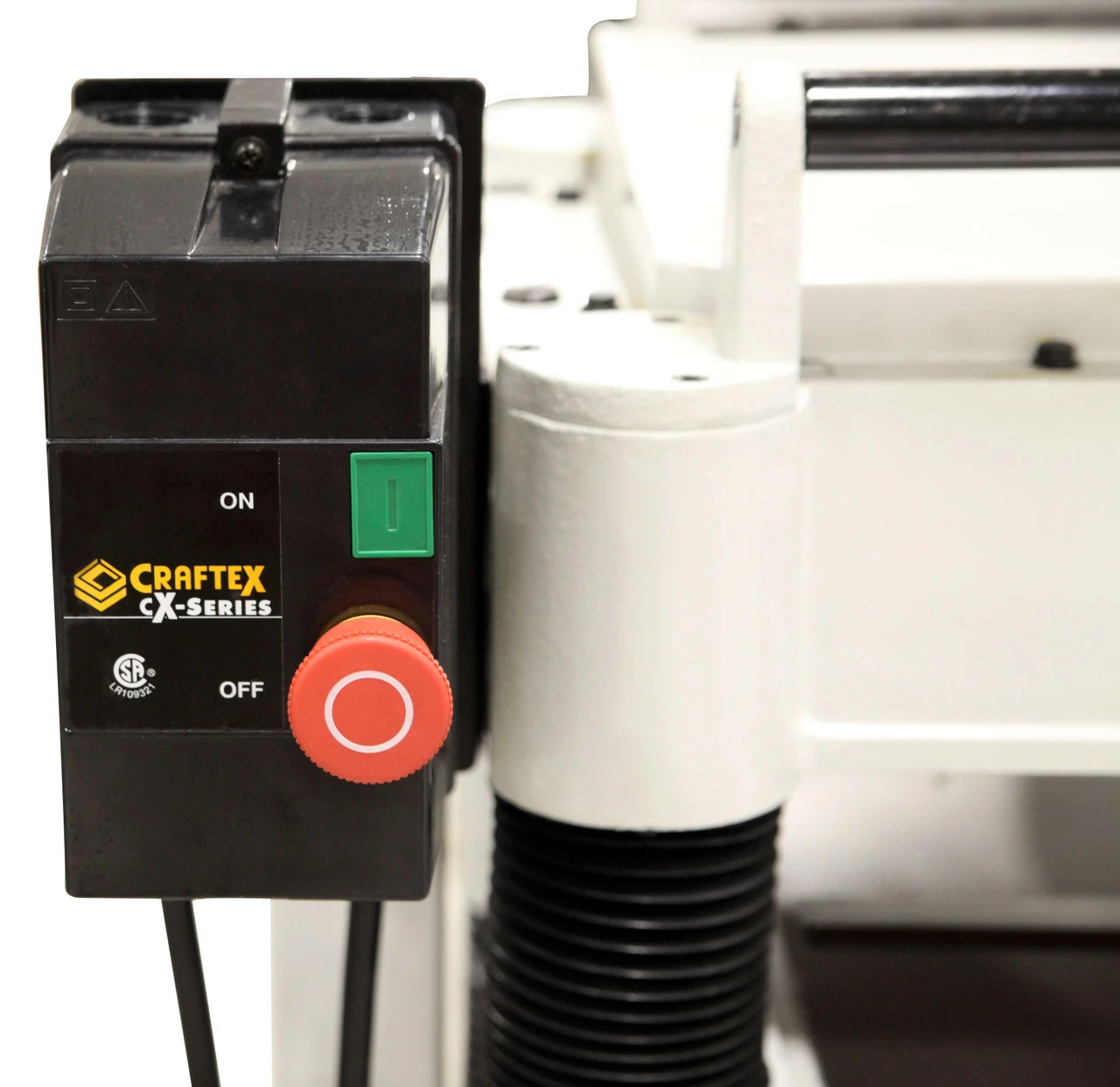

Magnetic Safety Switch
Rugged Four Column Support
Board Return Rollers
Solid Serrated Steel Power Feed Rollers
Shielded & Permanently Lubricated Bearings
Integrated Mobile Base

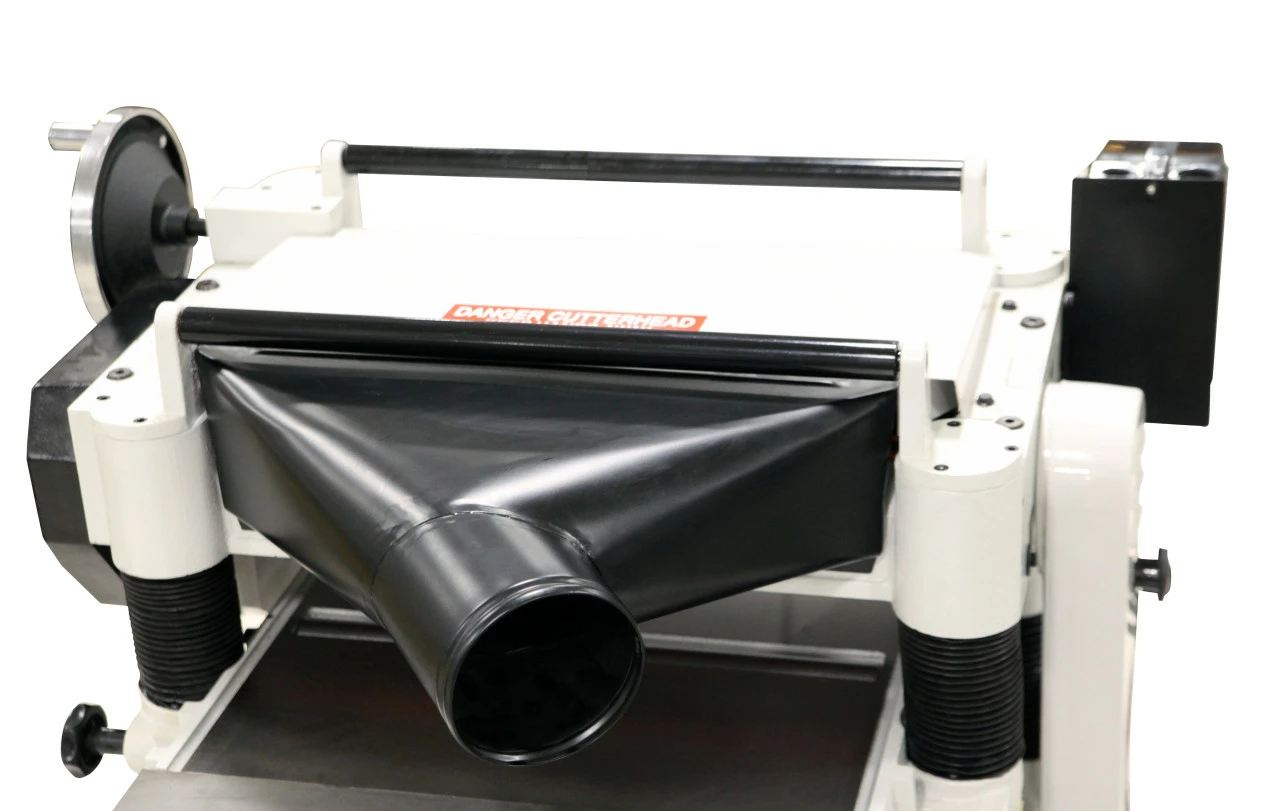

5″ Dust Port
Dual Speed Board Feed
Heavy Duty Enclosed Cabinet Stand
Triple V-Belt Drive
Powder Coated Paint
CSA Approved
3 Year Warranty

SPECIFICATIONS

Motor: 5HP, 220V, Single Phase, TEFC
Table Size: 25-3/4″ x 20″
Max. Cutting Width: 20″
Max. Cutting Height: 8″
Max. Cutting Depth: 1/8″
Cutterhead: 5 Row Helical Cutterhead with 100 Cutters
Dual Feed Rate: 16FPM & 20FPM & Neutral
Cutterhead Speed: 5000RPM
Weight: 350 Kg
