CX08HC

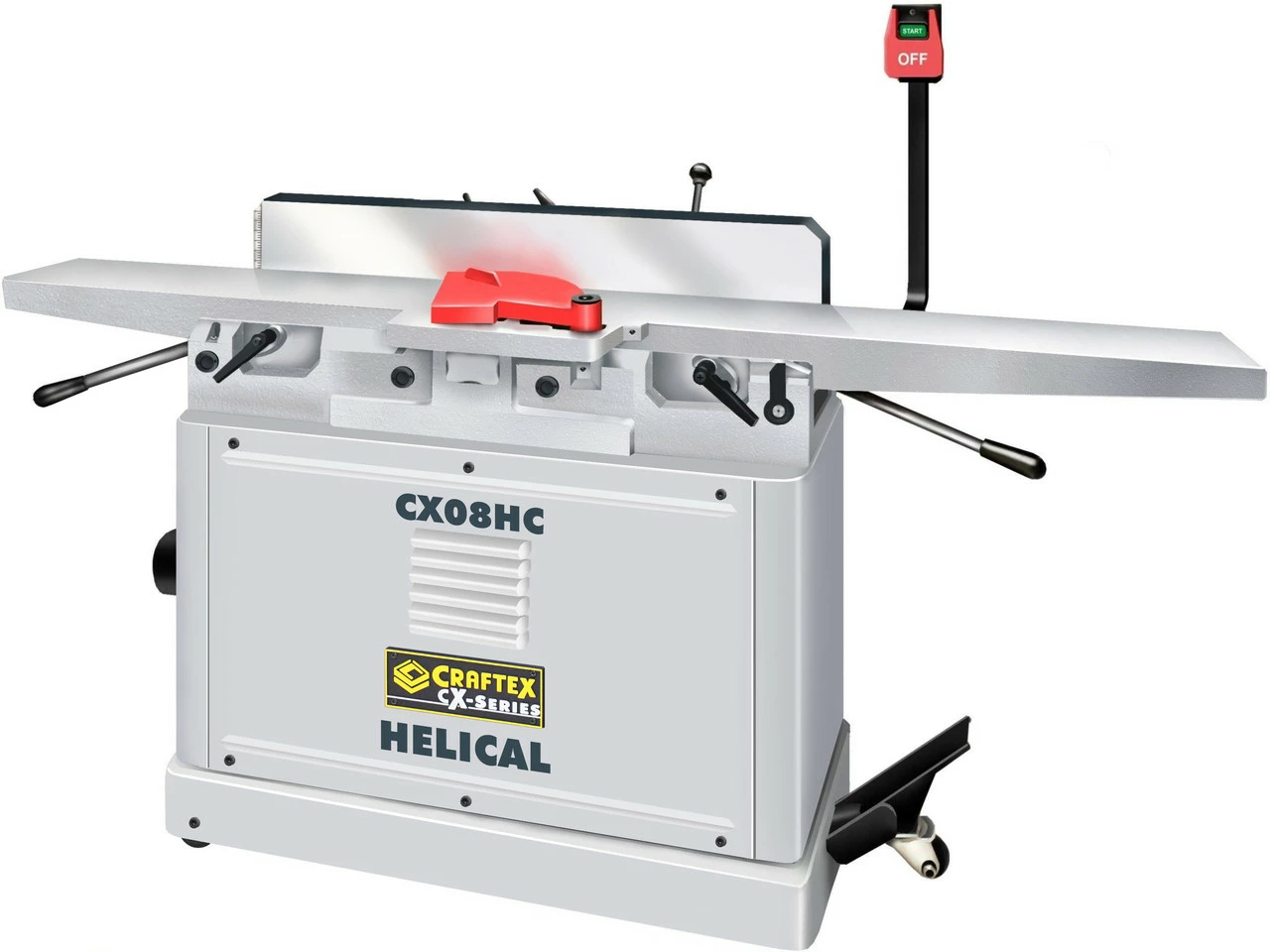

8″ Jointer with Helical Cutterhead – Craftex CX-Series

The CX08HC is equipped with a Helical Cutterhead which means it operates more like a sheer or skew cut taken with a hand plane, as the cutters are positioned at an angle to the feed rate and this shearing action provides a quieter, smoother and superior finish compared to the standard knives and the spiral cutterheads.

This machine is built in the same factory as our CX08SC (8″ Spiral Cutterhead Jointer), and after testing both units side by side, the Helical Cutterhead provided a smoother and superior finish compared to the Spiral Version.

This 8″ jointer with helical cutterhead has all the features woodworkers want for precision jointing and ease of use. With the parallelogram table adjustment you will never have to worry about your tables not being parallel. The 8″ wide and 76-3/8″ long table provides a perfect work surface for jointing and the fence stops allow to set the fence at 45 and 90 degrees. The 4″ dust port is for optimum dust removal and the integrated mobile base allows moving the machine with ease.

Like all CX-Series machines, this unit features powder coated paint and a full 3 year warranty.

FEATURES

Four Row Helical Cutterhead with 40 Cutters
Carbide Cutters are Made in Germany
Powerful 3HP, 220V, Single Phase Motor
Precision Ground Cast Iron Bed
Parallelogram Table Adjustment
Shielded and Permanently Lubricated Bearings
Integrated Mobile Base
Top Mounted On/Off Switch
4″ Dust Port
Single V-Belt Drive
Powder Coated Paint
CSA Approved
3 Year Warranty

SPECIFICATIONS

Motor: 3HP, 220V, Single Phase
Amps: 15
Table Size: 8″ x 76 3/8″
Cutter-Head Speed: 5,350 RPM
Max. Depth of Cut: 1/8″
Max. Width of Cut: 8″
Cutterhead Type: Helical
Fence Size: 35″ x 5″ x 1 1/4″
Fence Stops: 45 & 90 degrees
Weight: 230 Kg
