Outlet 💯 AXIOM AUTOROUTE 24IN. X 24IN. CNC ROUTER 😉

***SPECIAL ORDER PLEASE ALLOW FOR 3 TO 4 WEEKS FOR DELIVERY. EXTRA SHIPPING CHARGES WILL APPLY***(CSA Complaint. Pending CSA Certification)

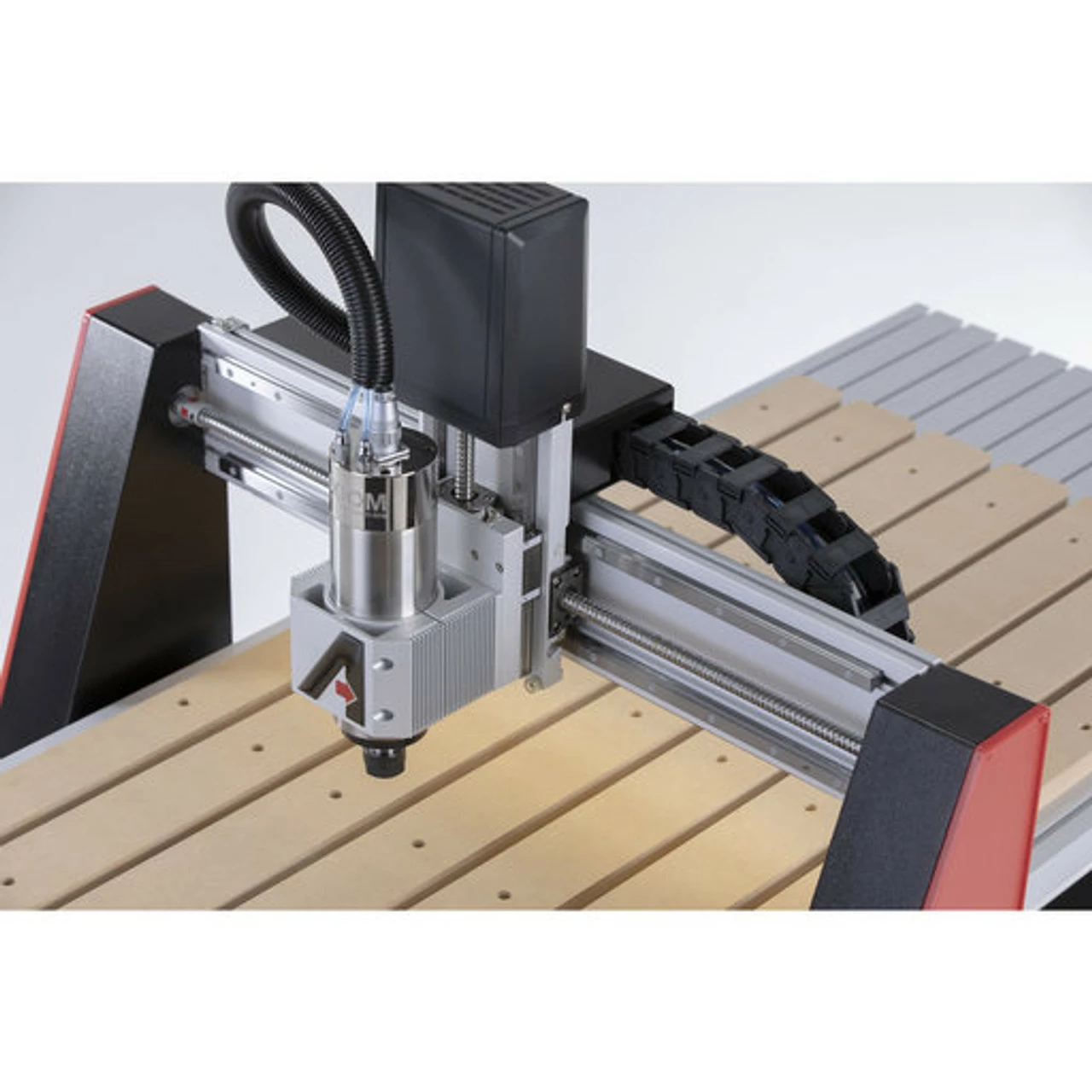

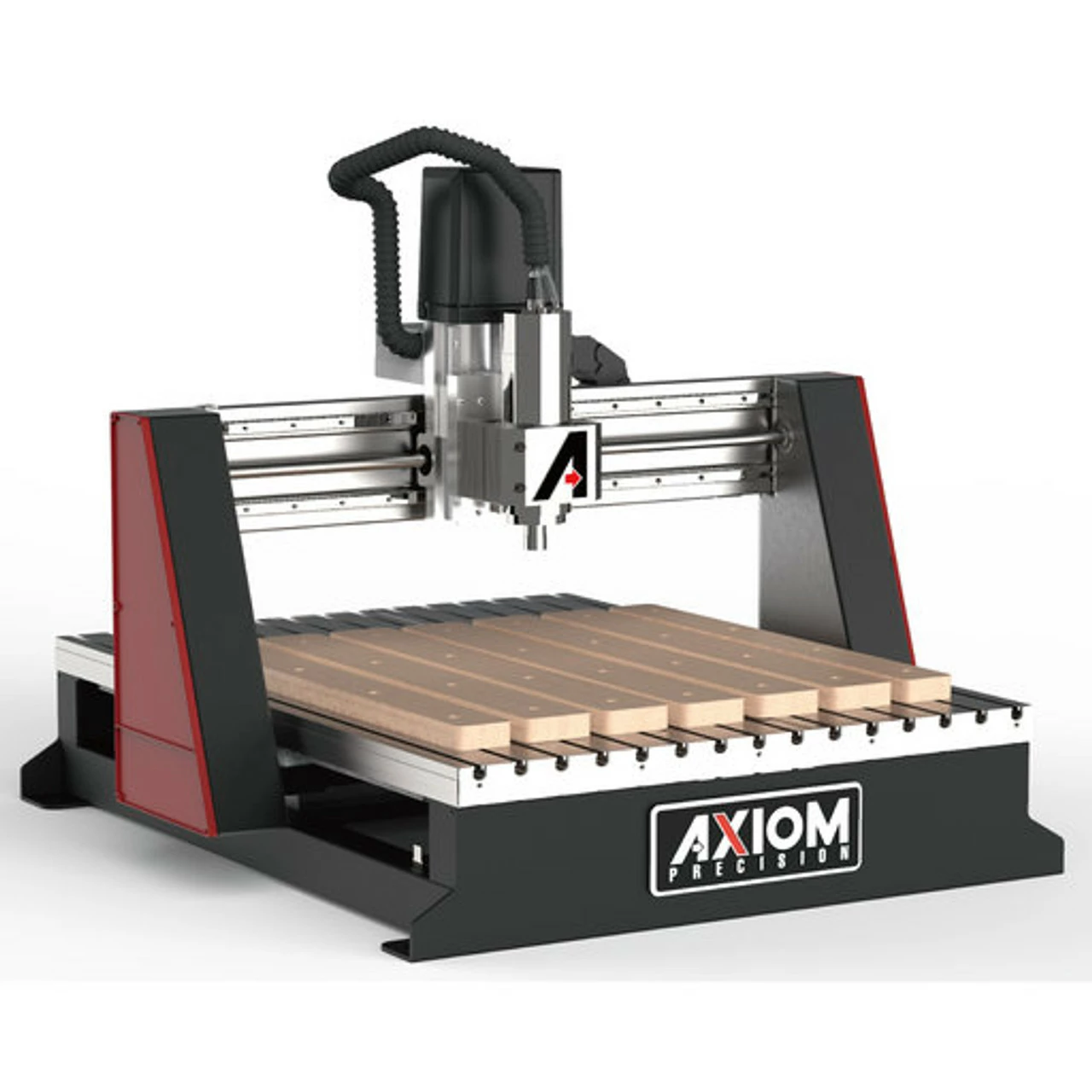

The Axiom Precision AutoRoute Pro+ Series of CNC routers offers all of the great features of our Pro Series machines, but adds 4th-axis capability. Powerful electro spindle performance, and rotary machining capability in a compact industrial machine. Our Pro+ Series CNC routers have a full 6” Z travel capacity, and a quiet yet powerful 3HP electro-spindle with integrated liquid cooling system. Each Pro+ machine is prewired to accept our optional Rotary Kit. The Axiom Autoroute Pro+ Series CNC routers also offer precision ball screws, prismatic guides, a robust steel frame, and interlocking aluminum table. In addition, the integrated MDF spoil boards promise you the all precision you need, since they can easily be milled flat for a true perpendicular surface to the spindle.

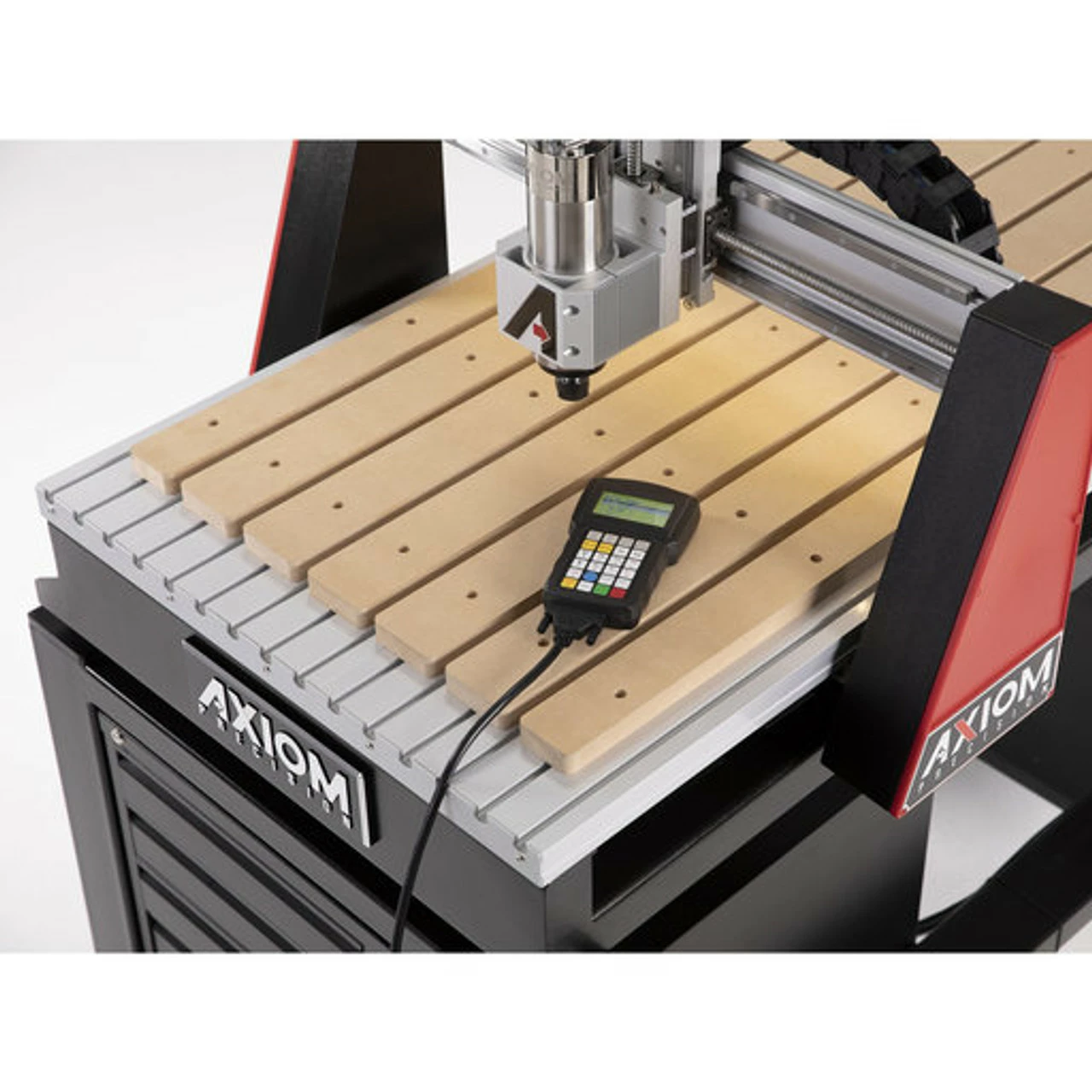

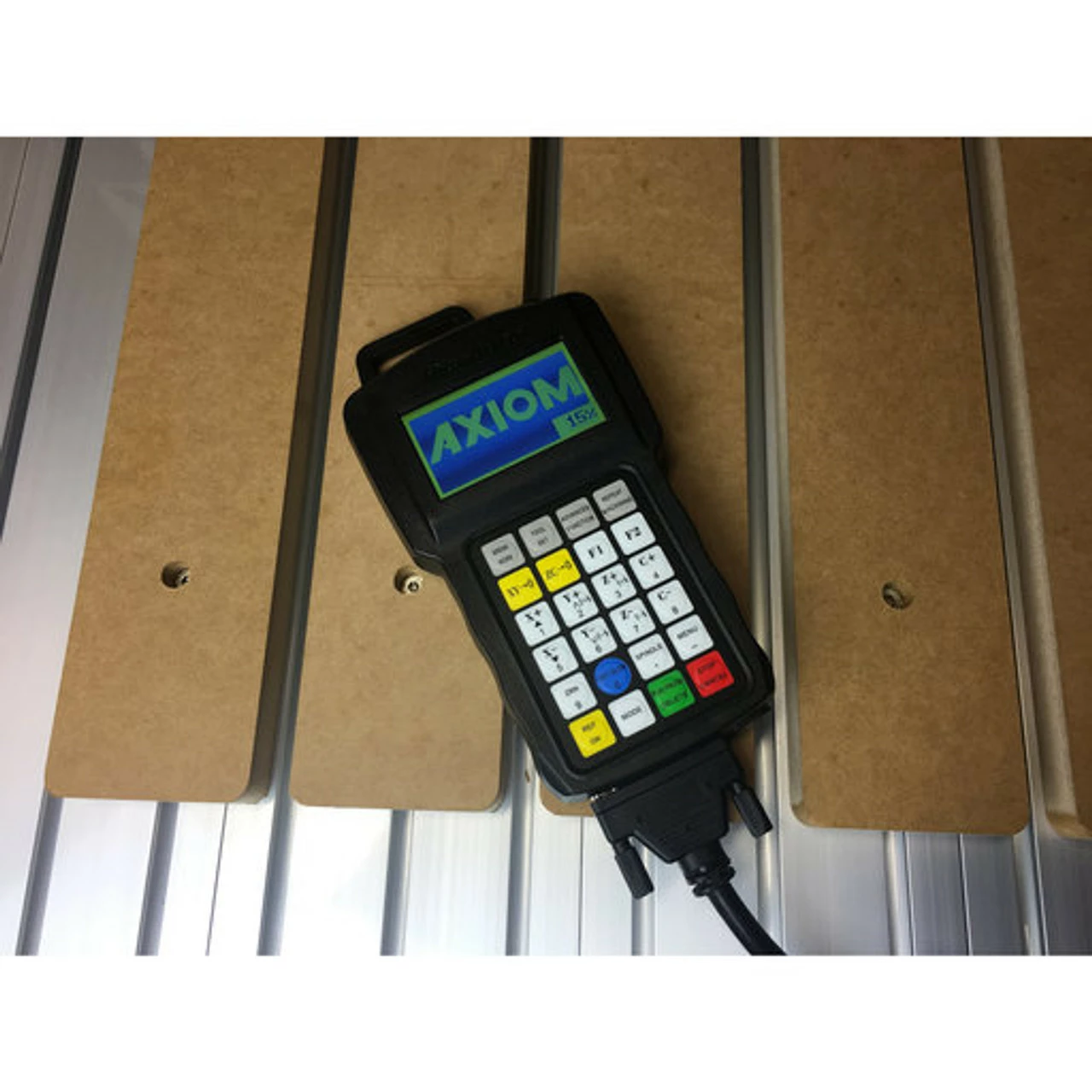

Choose from three footprint options, 24″ x 24″, 24″ x 36″ and 24″ x 48″. There is no need to attach your CNC router to your computer to operate it. Simply transfer your file to the handheld controller via USB storage device. The handheld RichAuto controller is a powerful, lightweight and easy to use controller with nearly a decade of proven results in demanding applications.

New Upgrades

Upgraded Stepper Motors (24 volt to 48 volt) for improved torque

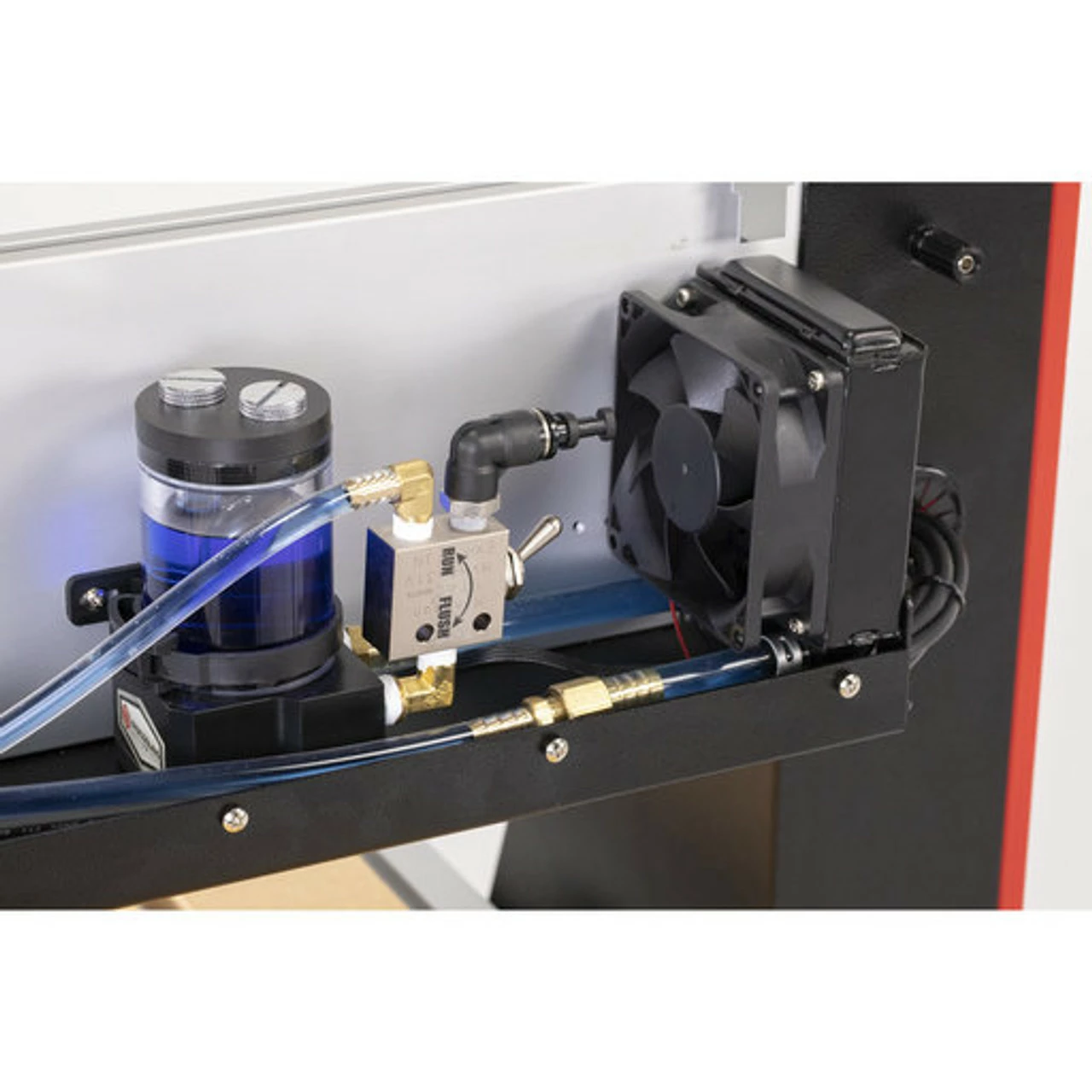

Upgraded Liquid Cooling System
Upgraded VFD for increased power

Features

3HP Electro Spindle
Integrated Liquid Cooling System
Rich Auto B18 DSP 4-Axis Controller
Interlocking Aluminum Table
Precision Ball Screws
Auto Tool Touch-off Plate
Optional Stand and Tool Box available

Specifications:

X axis travel: 24″ (610mm)
Y axis travel: AR4 = 24″ (610mm)
AR6 = 36″ (910mm)
AR8 = 48″ (1210mm)
Z axis travel: 6″ (153mm)
C axis travel: 360deg
Table work area: AR4 = 28.4″ x 39″
Spindle Configuration: ER20
Included Collets: 1/4″ & 1/2″
Electro Spindle: 2.2KW
Spindle speed: 0~24000 RPM
Rapid feed rate: 200 IPM (5 MPM)
Precision Linear Guideway: X/Y/Z
Precision Ball Screw: X/Y/Z
Ball Screw Diameter: 16mm
Positional Accuracy: +/- .00393″ (0.10mm)
Power requirements : 220 V,50~60 Hz, 10A, 1-Phase
Working Table: High rigidity Aluminum Extrusion
Gantry bridge: High rigidity Aluminum Extrusion
Gantry Supports: Aluminum alloy gravity cast
Gantry Clearance: 6.5″ (165.1mm)
Machine Base: All Welded Steel
Frame Machine Dimensions: AR4 = 39.17″L x 37.36″W x 30.27″H
Shipping Dimensions: AR4 = 42″L x 39″W x 33″H
Shipping Weight: AR4 = 320 lbs
Tool Touch-Off Device: Included
Onboard Cooling System: Included
Controller: Richauto B18 DSP 4-Axis Controller
CNC motion control system
USB port for easy file transfer.
