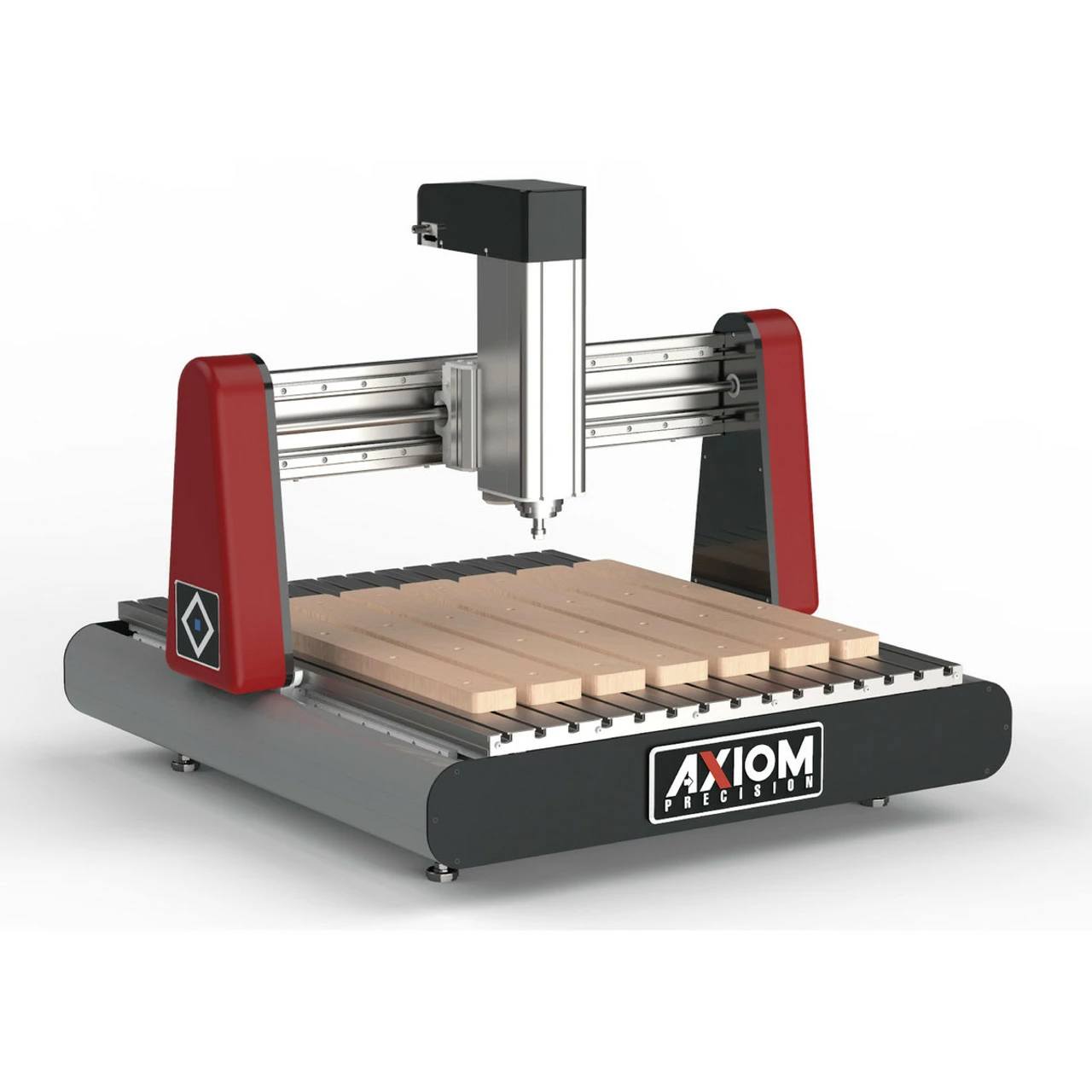

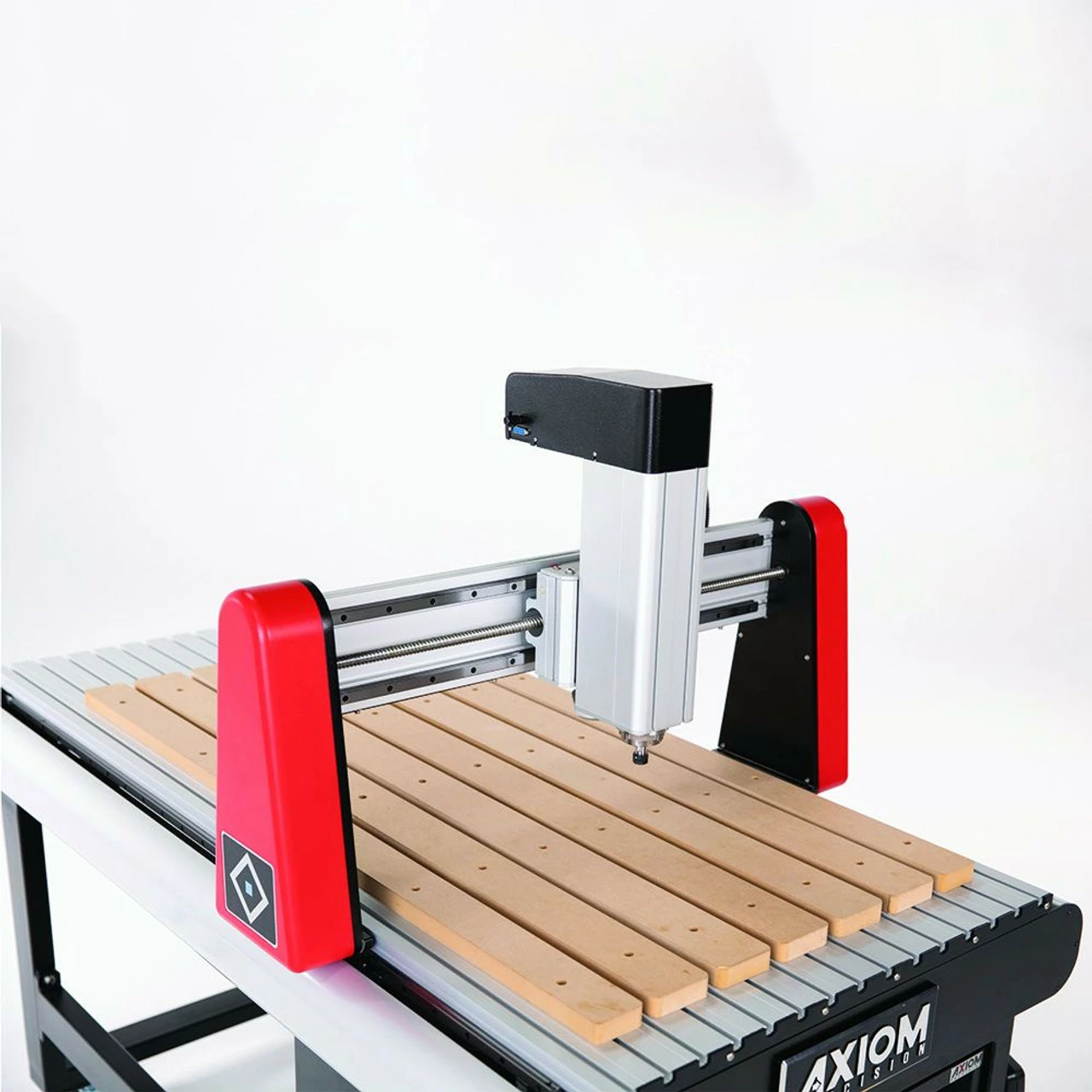

Cheap 😀 AXIOM ICONIC 24IN. X 24IN. CNC ROUTER ⌛

***SPECIAL ORDER PLEASE ALLOW FOR 3 TO 4 WEEKS FOR DELIVERY. EXTRA SHIPPING CHARGES WILL APPLY***(CSA Complaint. Pending CSA Certification)

Rarely does the least expensive solution possess best-in-class features That changes with the launch of Axiom’s new Iconic CNC machining center. The best technology and components have been selected to build what will surely be the new king of the entry-level CNC market.

The new Iconic CNC series includes three sizes, each with prismatic guides, ball screws, and the same powerful, yet easy to use, DSP pendant controller which we utilize on our larger machines. We also provide a full complement of accessories ensuring that you’ll receive a package that’s specifically tailored to your CNC needs.

Targeted specifically at the first-time CNC user, the new Iconic lineup will be supported with a comprehensive manual and video library which are intended to dramatically shorten a new user’s learning curve.

Features:

High Rigidity Extruded Aluminum Frame
Interlocking Aluminum Table
Integrated MDF Spoil Board
Auto Tool Touch-off Plate

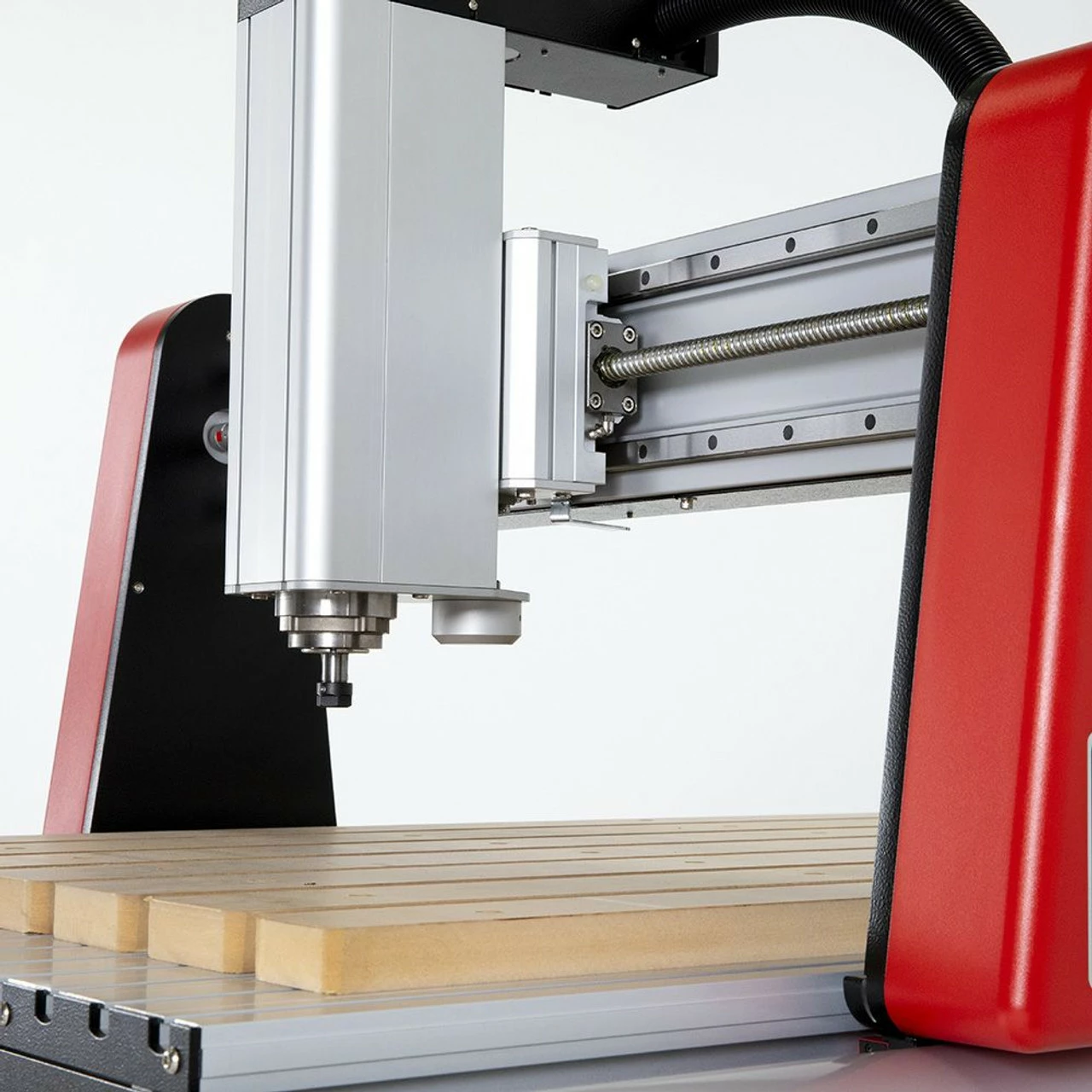

Prismatic Guides In All Axes
Precision Ball Screws
1HP (800W) Electro Spindle
Rich Auto B11 Industrial 3-Axis CNC Controller

Specifications:

X axis travel: 24″ (610mm)
Y axis travel: Iconic-4 = 24″ (610mm)
Z axis travel: 3.937″ (100mm)
Table work area: Iconic-4 = 28.4″ x 37″
Electro Spindle: 800W (1HP)
Spindle speed: 0-24,000 RPM
Rapid feed rate: 150 IPM (3.81 MPM)
Precision Linear Guide way: X/Y/Z
Precision Ball Screw: X/Y/Z
Ball Screw Diameter: 16mm
Positional Accuracy: +/- .00589″ (0.15mm)
Power requirements: 115V, 50~60Hz, 13A, 1-Phase
Working Table: High rigidity Aluminum Extrusion
Gantry bridge: High rigidity Aluminum Extrusion
Gantry Supports: Aluminum billet machined
Gantry Clearance: 4 1/2″ (114.0mm)
Machine Base: All Welded Steel Frame
Machine Dimensions: i2R-4 = 38″L x 35″W x 28″H
Shipping Dimensions: i2R-4 = 40″ x 37″ x 15″
Machine Weight: i2R-4 = 176 lbs
Tool Touch Off Included
Controller
Rich auto B11 DSP
CNC motion control system
USB port for easy file transfer
