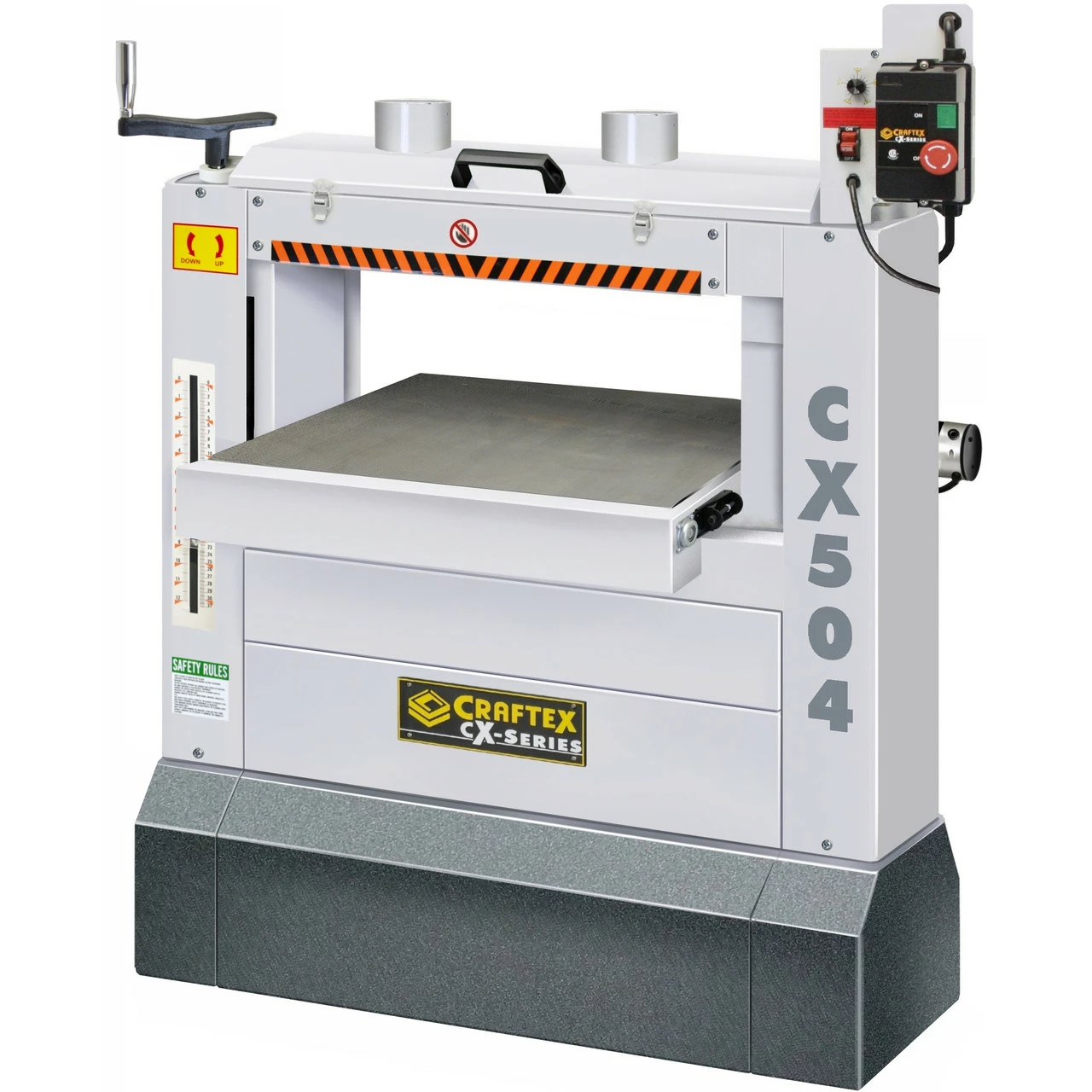

26″ Drum Sander – Craftex CX-Series

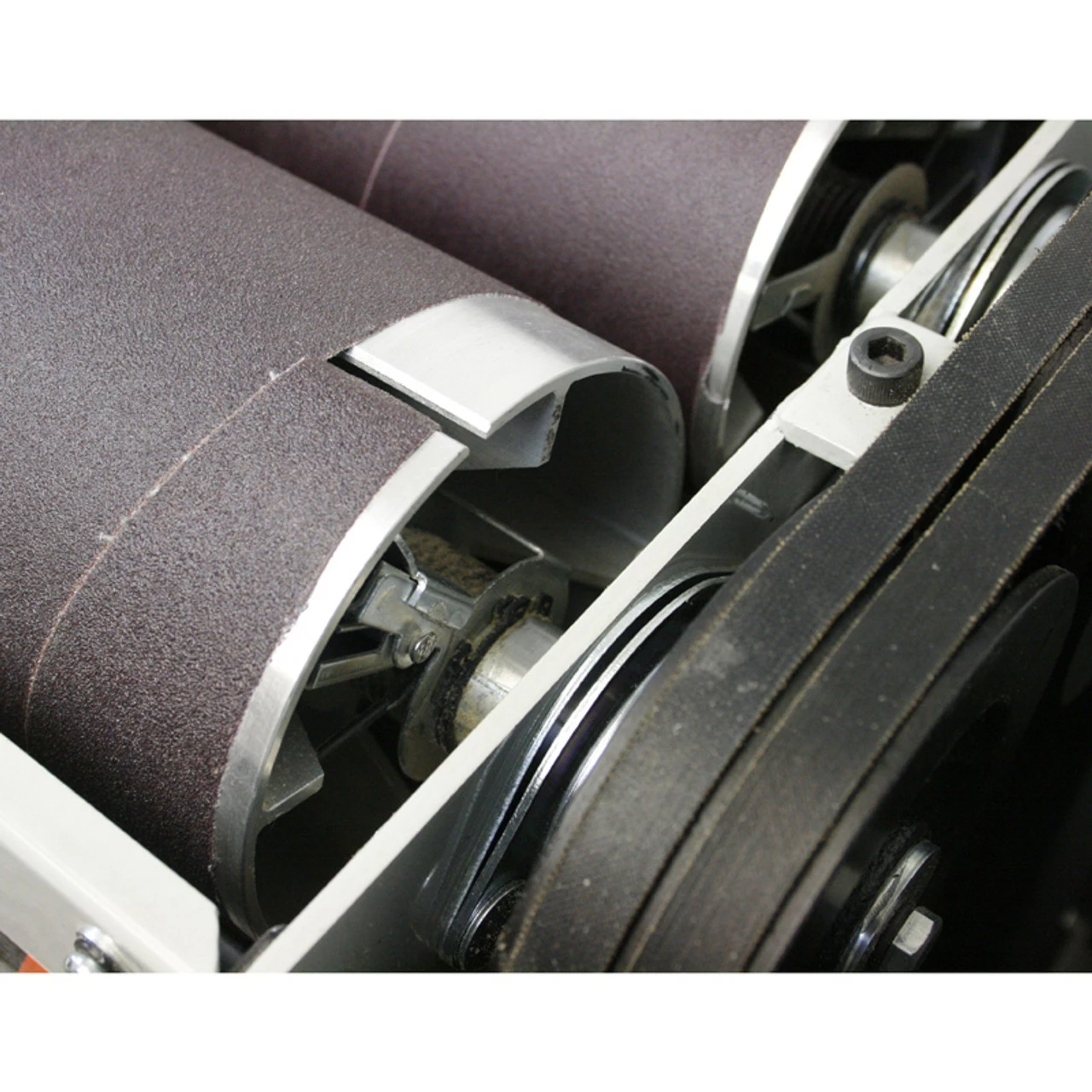

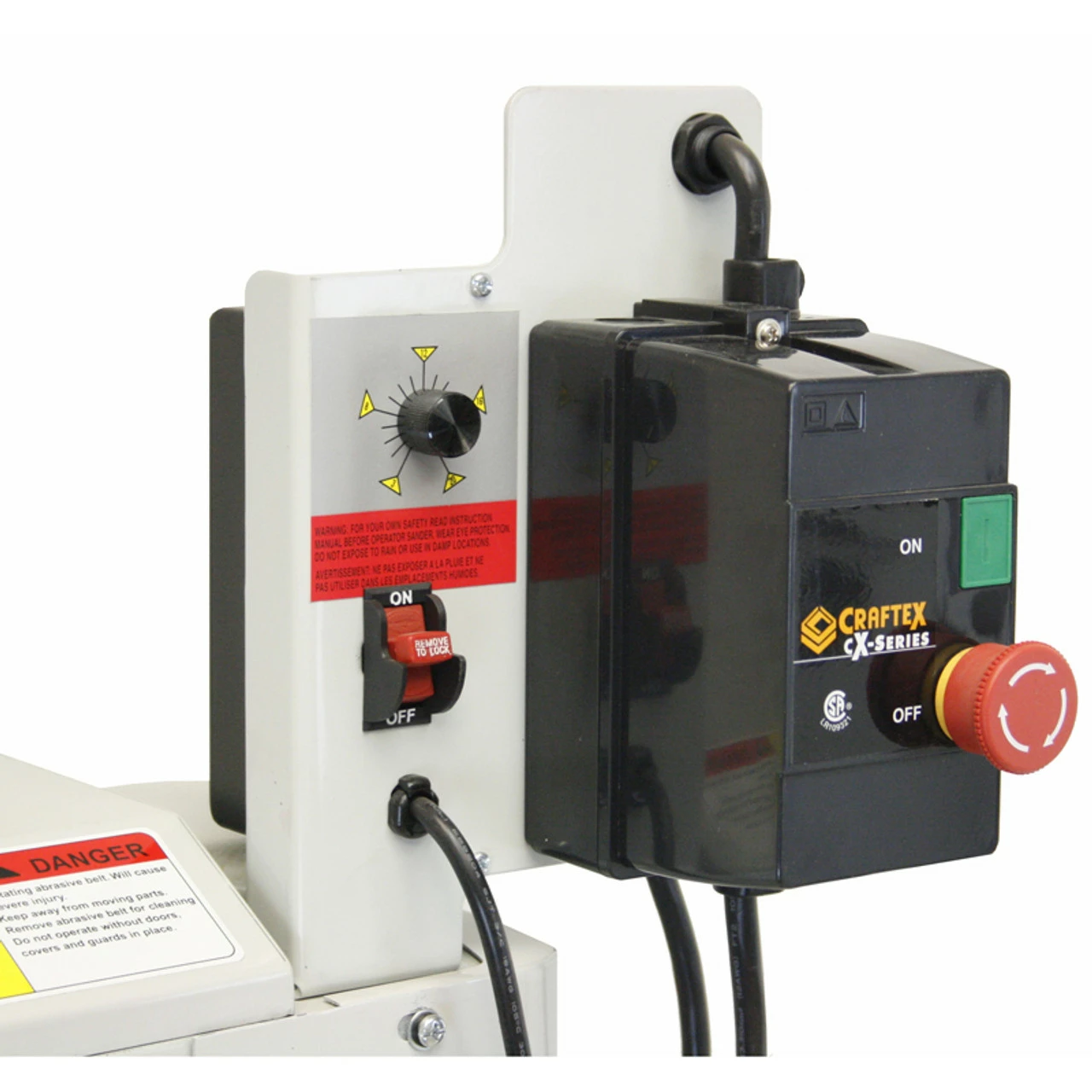

The CX504 features a high output 3HP motor which turns the two 6″ drums at a speed of 1600 RPM for an excellent result. This sander can take work-pieces up to 26″ wide and 12″ thick and is equipped with a heavy duty conveyor belt which feeds the work-piece 3 – 20 surface per minute into the sander for smooth sanding. The control panel is installed on the front side of the machine to the right and controls the power to the machine and the conveyor belt. The sander is equipped with two drums allowing coarse and fine sanding in one pass and has two 4″ dust ports on the top for optimum dust removal. Sand paper replacement on CX504 is made easy using two spring clips which hold the sand paper around the drum.

Like all CX-Series machines, this unit features powder coated paint, sharp looking two tone colours and a full 3 year warranty.

FEATURES

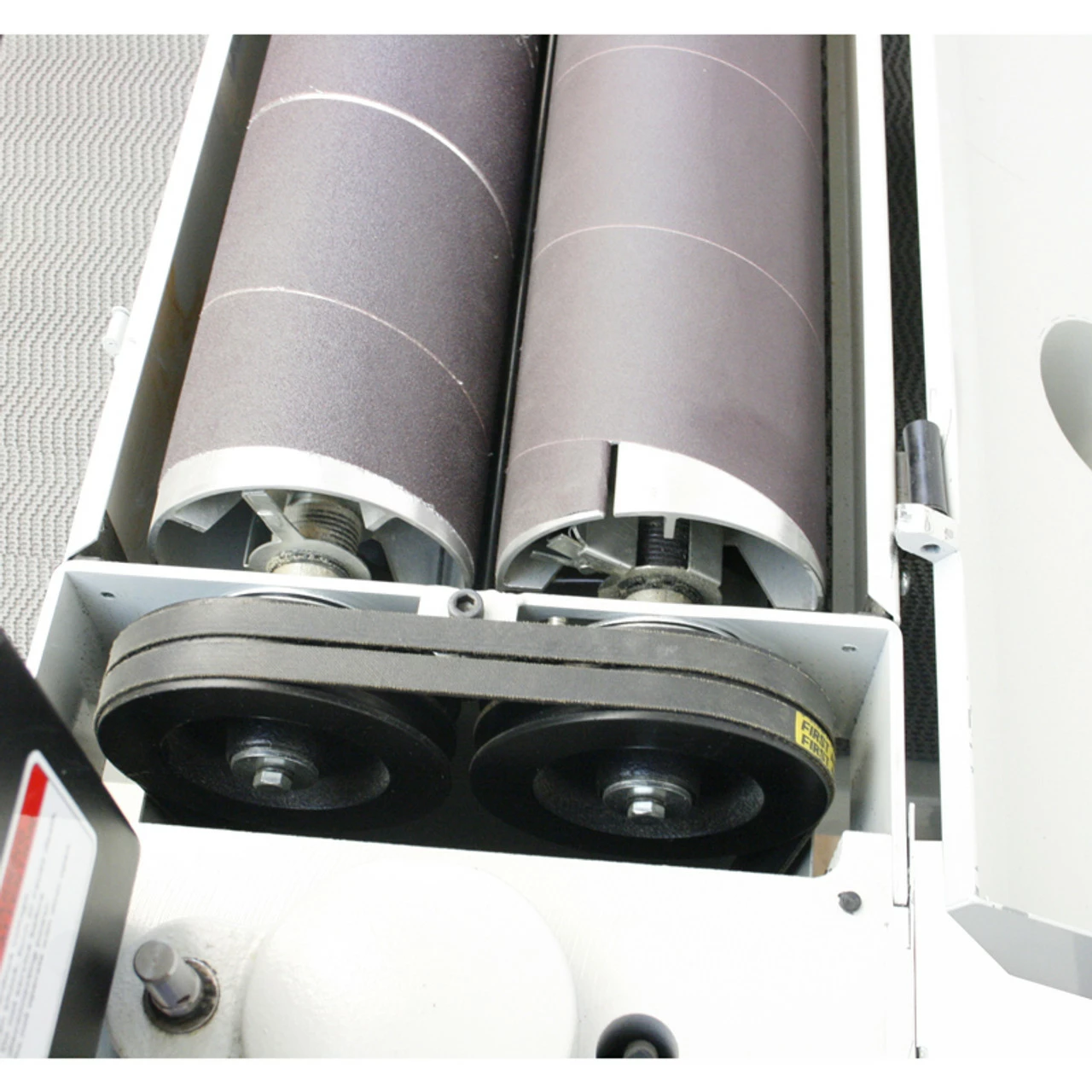

Two Sanding Drums for Coarse & Fine Sanding in One Pass

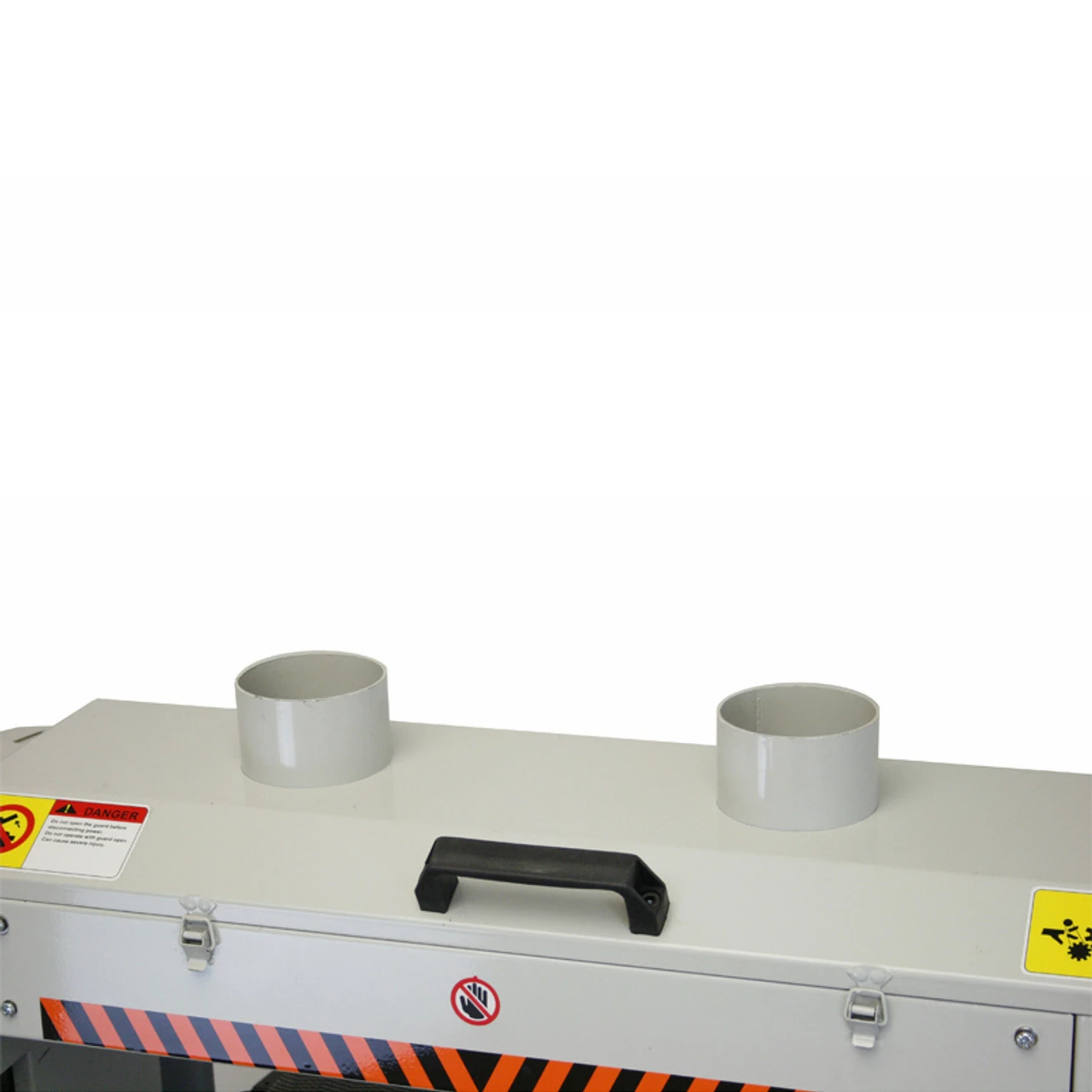

Two 4″ Dust Ports for Optimum Dust Removal
Powder Coated Paint
Made in Taiwan
3 Year Warranty

SPECIFICATIONS

Motor: 3-HP 220-Volt, 60-Hz, Single Phase
Belt Feed Motor: 1/4-HP, 220V, Single Phase
Maximum Sanding Width: 26″
Maximum Board Thickness: 12″
Minimum Board Thickness: 1/4″
Minimum Board Length: 5″
Sanding Belt Size: Width 5-1/8″ x Length 7′ 9″
Feed Speed: 3, 8, 12, 16 and 20 SFPM
Drum Speed: 1,600 RPM
Dust Ports: Two 4″ Each
Dimensions: Length 46″ x Width 30-1/2″ x Height 49″
Weight: 486 lbs
