Promo 😉 JOINTER 8IN. 3HP 4 KNIVE CUTTERHEAD CSA CX08 🤩

CX08

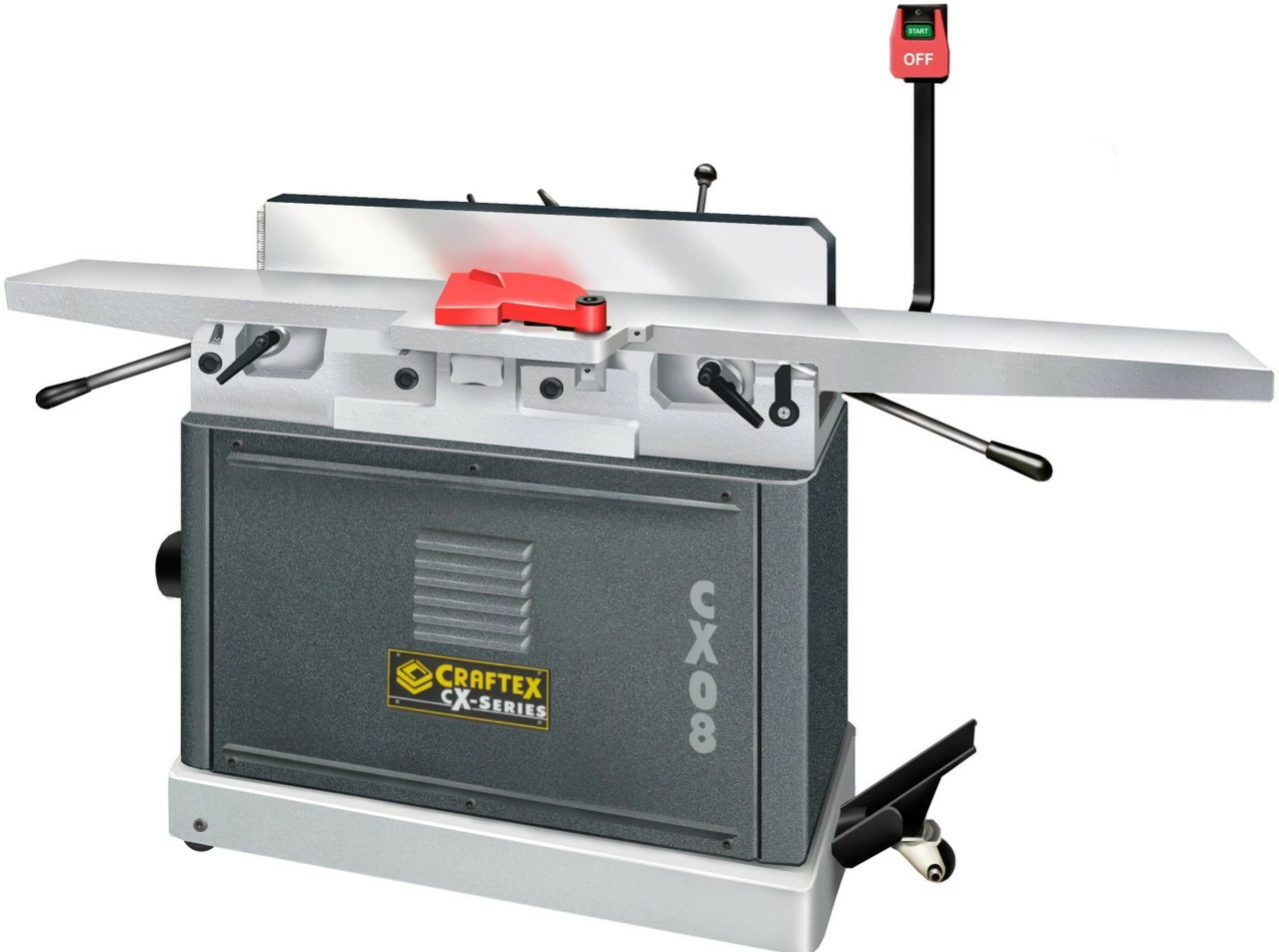

8″ Parallelogram Jointer – Craftex CX-Series

This 8″ Jointer has the features any serious woodworker would be looking for. Starting with a powerful 3HP motor and a long 76 3/8″ bed, this jointer is built to cut stock all day. Other features include parallelogram table adjustment, integrated mobile base, top mounted pedestal on/off switch and overall heavy duty construction. Like all CX-Series machines, this unit features powder coated paint, sharp looking two tone colours and a full 3 year warranty.

Features

Powerful 3HP, 220V, 1PH, TEFC motor
Precision Ground Cast Iron Bed

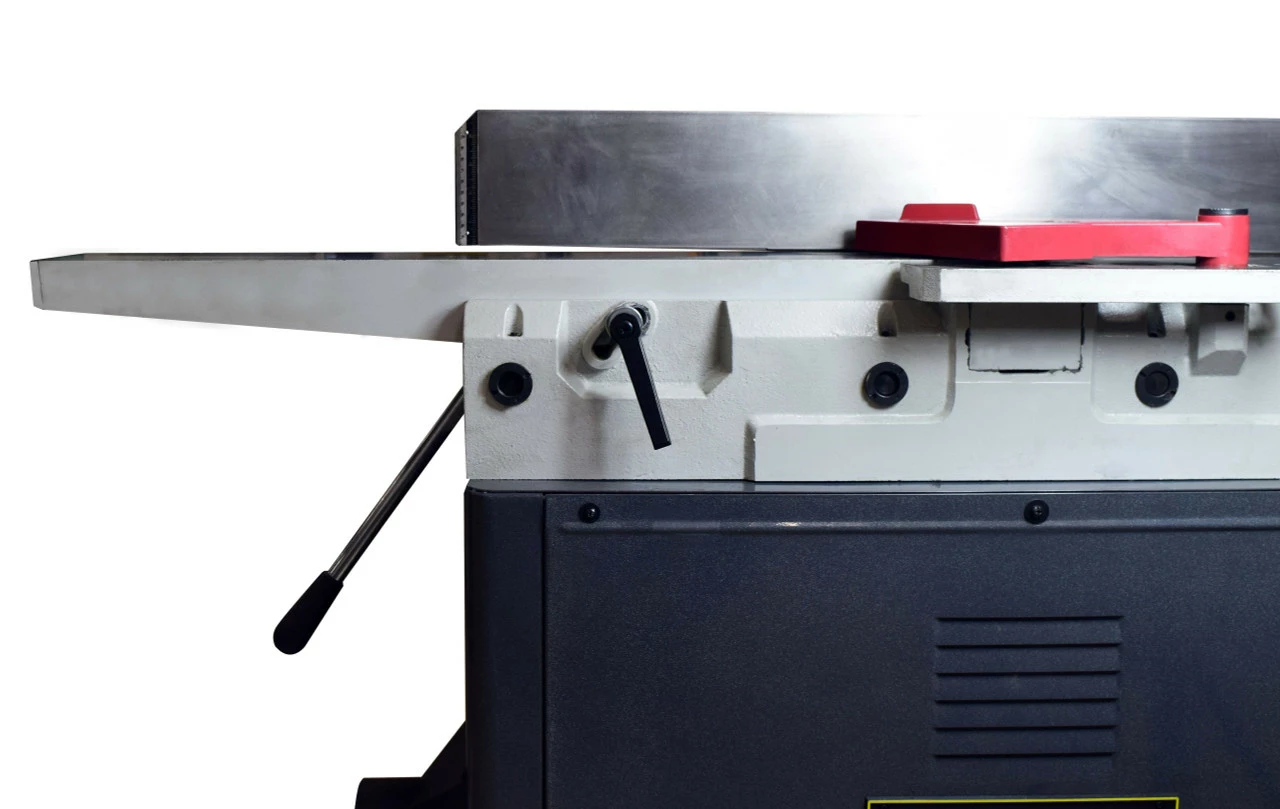

Parallelogram Table Adjustment
4 H.S.S Knife Cutterhead
Shielded and Permanently Lubricated Bearings
Integrated Mobile Base
Top Mounted On/Off Switch
4″ Dust Chute
Single V-Belt Drive
Powder Coated Paint
CSA Approved
3 Year Warranty

Specifications

Motor – 3HP, 220V, 1PH, TEFC
Amps – 15
Table Size – 8″ x 76 3/8″

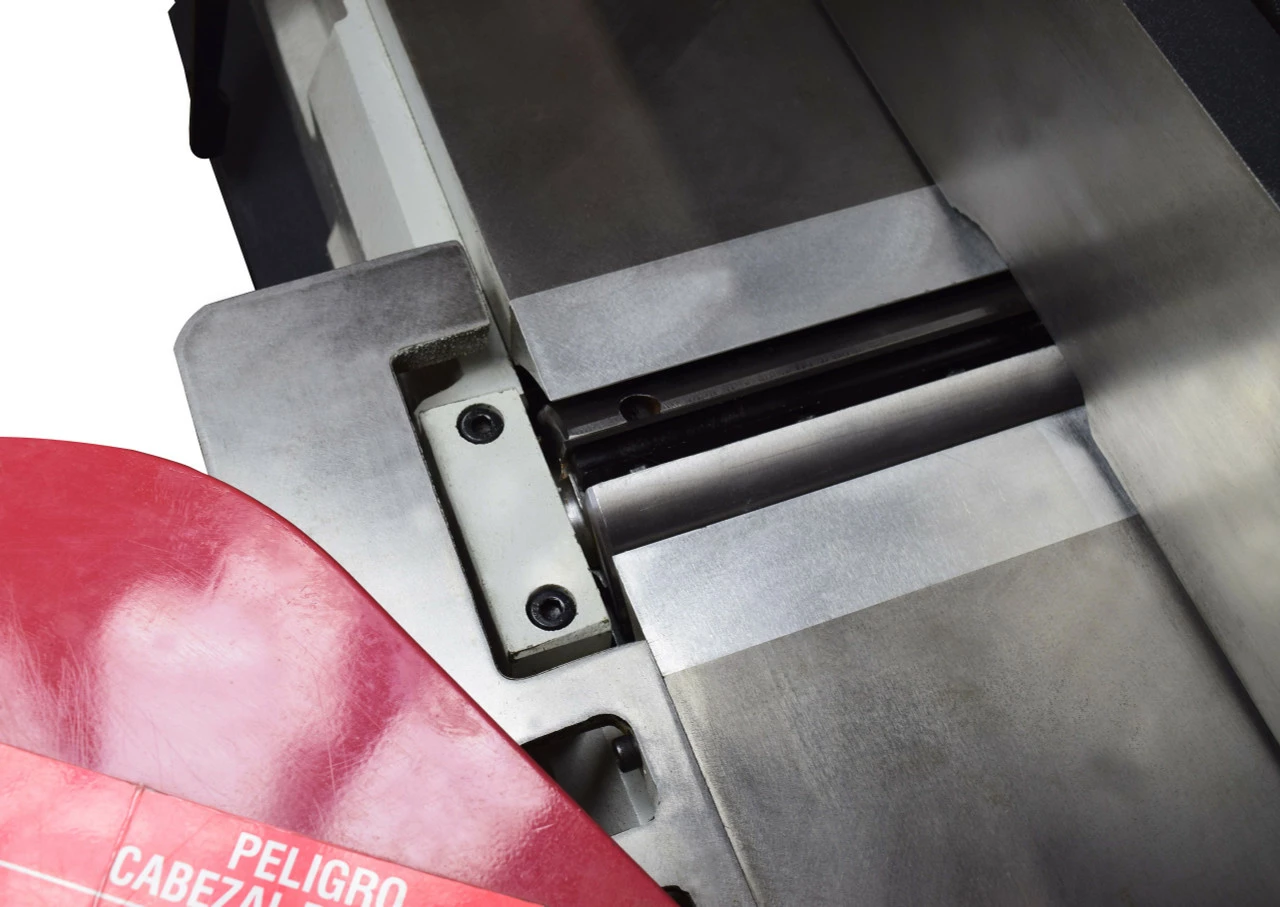

Cutterhead – 4 Knife H.S.S
Cutterhead Speed – 5350 RPM
Max. Depth of Cut – 1/8″
Fence Size – 35″ x 5″ x 1 1/4″
Fence Stops – 45 & 90 degrees
Weight – 230 kg
Approx. Shipping Weight – 265 kg
Carton Dimensions
Carton 1 – 28″ x 18″ x 38″
Carton 2 – 24″ x 11″ x 81″
