Special Order, allow 3 to 4 weeks delivery if in stock with Laguna. Check with a Busy Bee Team member for accurate stock status.

Prices on Industrial machines from Laguna are subject to change, due to the nature of how Laguna quotes on these machines. The pricing listed on our website may not be accurate. Please speak with your Busy Bee Sales representative or call 1-800-461-2879 for more accurate information on pricing and lead time. Prices are subject to change without notice.

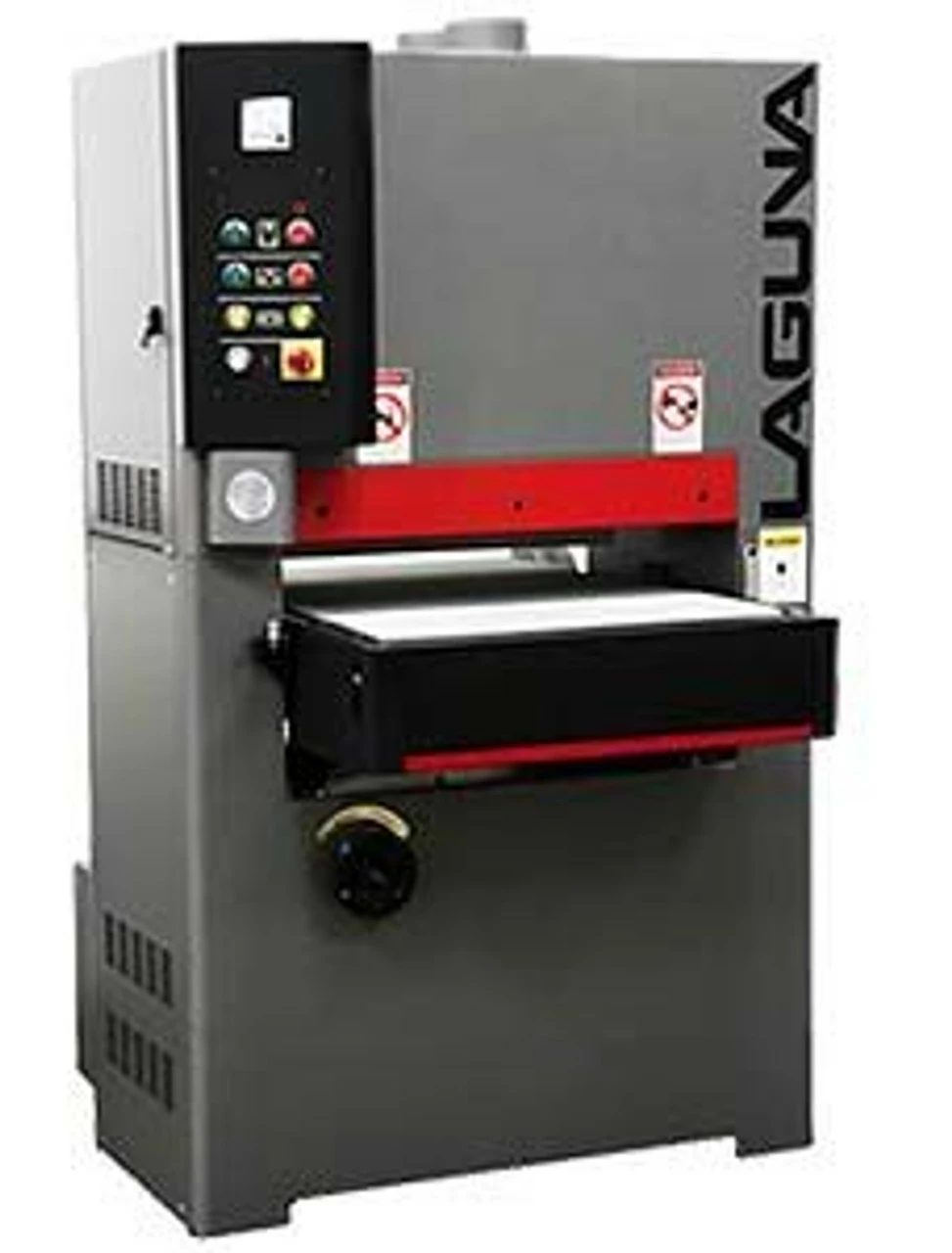

The Laguna Tools 43″ 2RK (Roller + Combo head) wide belt sander is a perfect fit for woodworking shops of all sizes. The belt length is 75″ which is the same length as several larger machines. The longer belt means it will not only last longer due to more abrasive material it will also run cooler.

This machine is equipped with 1 ( 8”) roller and a second (4”) roller followed by a wide platen for fine finish. This allows you to use a rougher grit on first roller (8”) that will absorb most of the impact and do the dimensioning while the second roller (4”) with the Platen can have a finer grit. This will save time over having to run your production through the machine 2 times & change belt grit. Due to the large HP motor (25 HP) the machine is capable of dimensioning even wide boards. This is important for customers who do not own a thickness planer. When you use the machine to dimension your work only very aggressive paper 60 or 80 grit should be used. The heavy carpet feed belt is powered by a separate 2HP motor and the feed speed is adjustable from 12 to 60 fpm. You can adjust the thickness in 4 ways: Manual hand-wheel on the bottom of the machine. By pressing the up or down arrow the table will move in desired direction. Input a set dimension on the key pad and machine will go to that dimension. The auto thickness gauge will measure your wood piece and automatically set the table to the thickness of the piece of wood inserted.

Specifications:

Main motor: 25HP
Variable feed speed: 2HP
Table lifting motor: 0.25HP
Voltage: 220V, 3 Phase, 60 Hz.
Programmable Logic Control
Automatic Thickness Control
Max sanding height: 150mm/5.9″
Min sanding height: 1/4″ [6,4 mm]
Max sanding width: 43″ [1100 mm]
Sanding belt size: 43″ X 75″ [1100 mm X 1905 mm] Adjustable sanding platen: 1-3/4″ inch [45 mm] Diameter of sanding drum: 8” + 4”, Length of sanding drum: 43”
Sanding drum RPM: 1725 RPM
Conveyor speed: 12-60 FPM
Dust port size: 4″ [100 mm]
Number of dust ports 3
Foot print: 63” X 65” X 87”
Conveyor height at lowest setting: 32 inches [813 mm]
Cabinet: Steel
Operating air pressure: 6 Bar
Sanding belt oscillation: Pneumatic/Adjustable Sanding belt motor break: Yes. Air operated disc break
CSA: Fully Certified

Net Weight: 1646,54 Kg (3630 Lbs.)
Ship Weight: 1905.01 Kg (4200 Lbs.)
