Wholesale 🧨 LAGUNA 5HP PRO SHAPER 1PH 💯

Special Order, allow 3 to 4 weeks delivery if in stock with Laguna. Check with a Busy Bee Team member for accurate stock status.

The Laguna Pro Shaper combines a precision shaper with features normally found only in much higher priced machines.

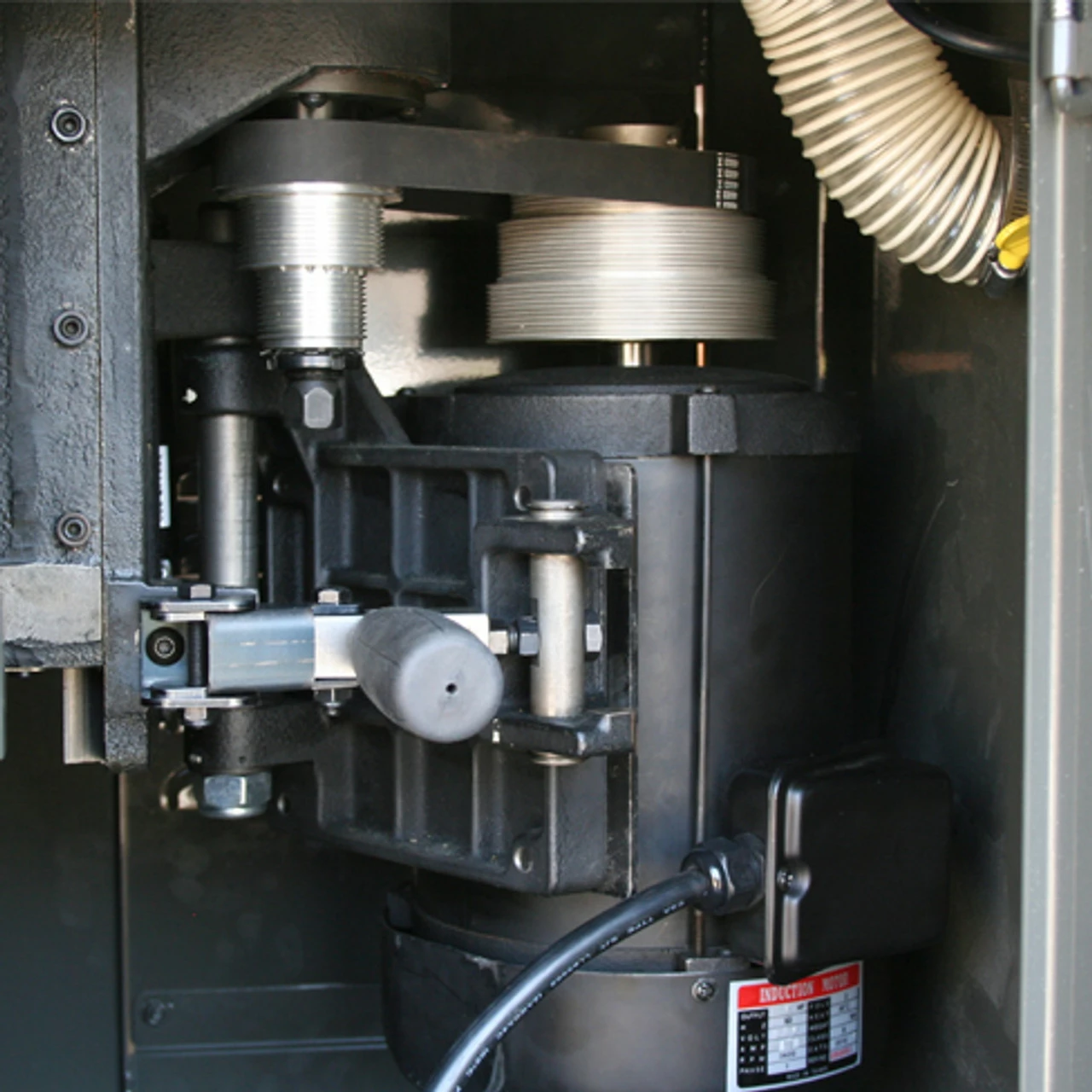

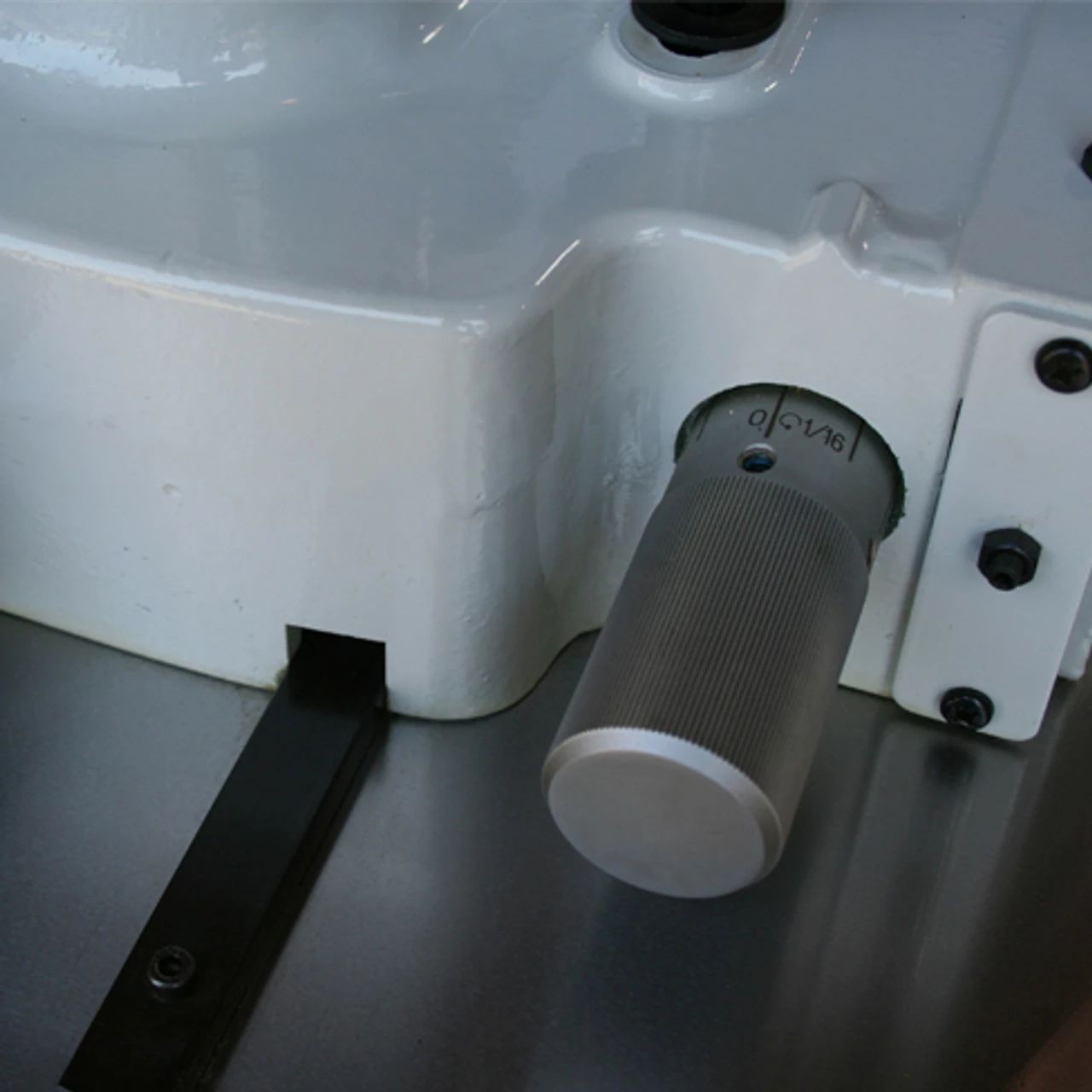

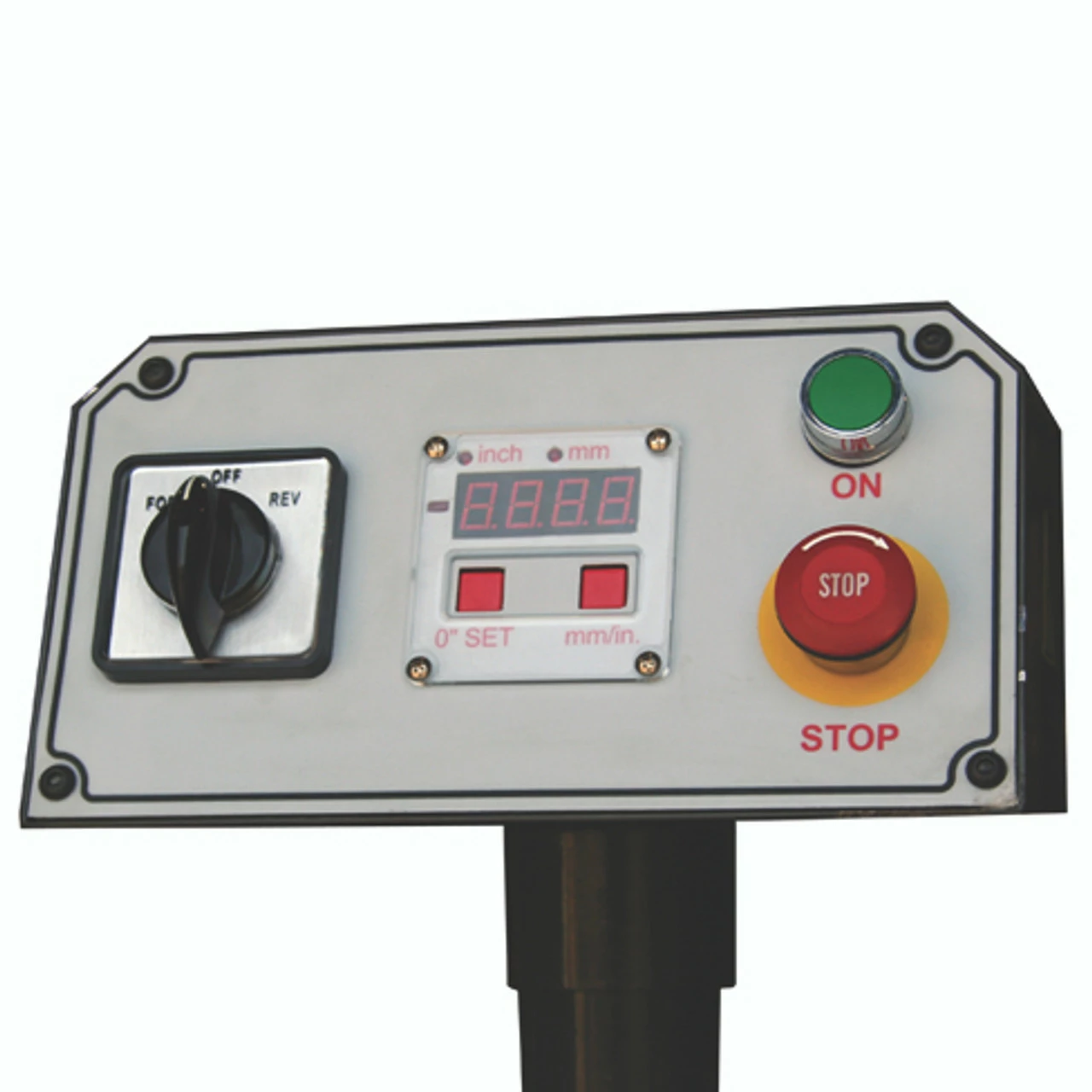

For starters, the table measures an impressive 31″” x 39″” and is predrilled to accept most power feeders. The fence has a precision micro-adjustment that is aligned by a solid steel bar. Each full revolution of the turn handle gives an exact 1/16″” adjustment to the fence. Inside you will find a heavy-duty motor available in either 5HP 220 volt single phase or 7.5 HP 220 volt three phase. Each offers 3 speeds with a unique quick-change poly-groove belt system rather than the traditional V-belt. Digital readout is standard for the spindle height. The Pro Shaper is also equipped with a reversing switch and all controls are mounted with an easy access panel.

The fit and finish on this machine are top-notch and even includes a wheel kit built right into the base. The Laguna Pro Shaper is designed to give you years of trouble-free performance without breaking the bank.”

Features:

Motor: 5HP 1 Phase 220V
Table size: 39-5/16? x 31-7/16? x 3-1/2″
Spindle travel: 4″
Spindle Sizes: 3/4″ and 1-1/4″

Specifications:

Motor: 5HP 1 phase 220V 60 HZ
Table size: 39-5/16″ X 31-7/16″ X 3-1/2″
Spindle travel: 4″
Spindle Sizes: 3/4″ and 1-1/4″
Capacity Under Nut: 6″ (for 1-1/4″) & 4″ (for 3/4″)
Router Collets: 1/4″ and 1/2″
Spindle speeds: 5000 / 7000 / 10000 rpm
Table Opening Diameter: 7-5/16″
Digital Readout: Standard
Direction: Forward/Reversing Switch
Fence: Micro Adjustment

Box Dimensions: 43”L x 43”W x 60”H
Weight (Net/Ship): 290.3/326.59 Kg (640/720 Lbs.)
