New 🧨 LAGUNA JX 16IN. SHEARTEC JOINTER 😉

Prices on Industrial machines from Laguna are subject to change, due to the nature of how Laguna quotes on these machines. The pricing listed on our website may not be accurate. Please speak with your Busy Bee Sales representative or call 1-800-461-2879 for more accurate information on pricing and lead time. Prices are subject to change without notice.

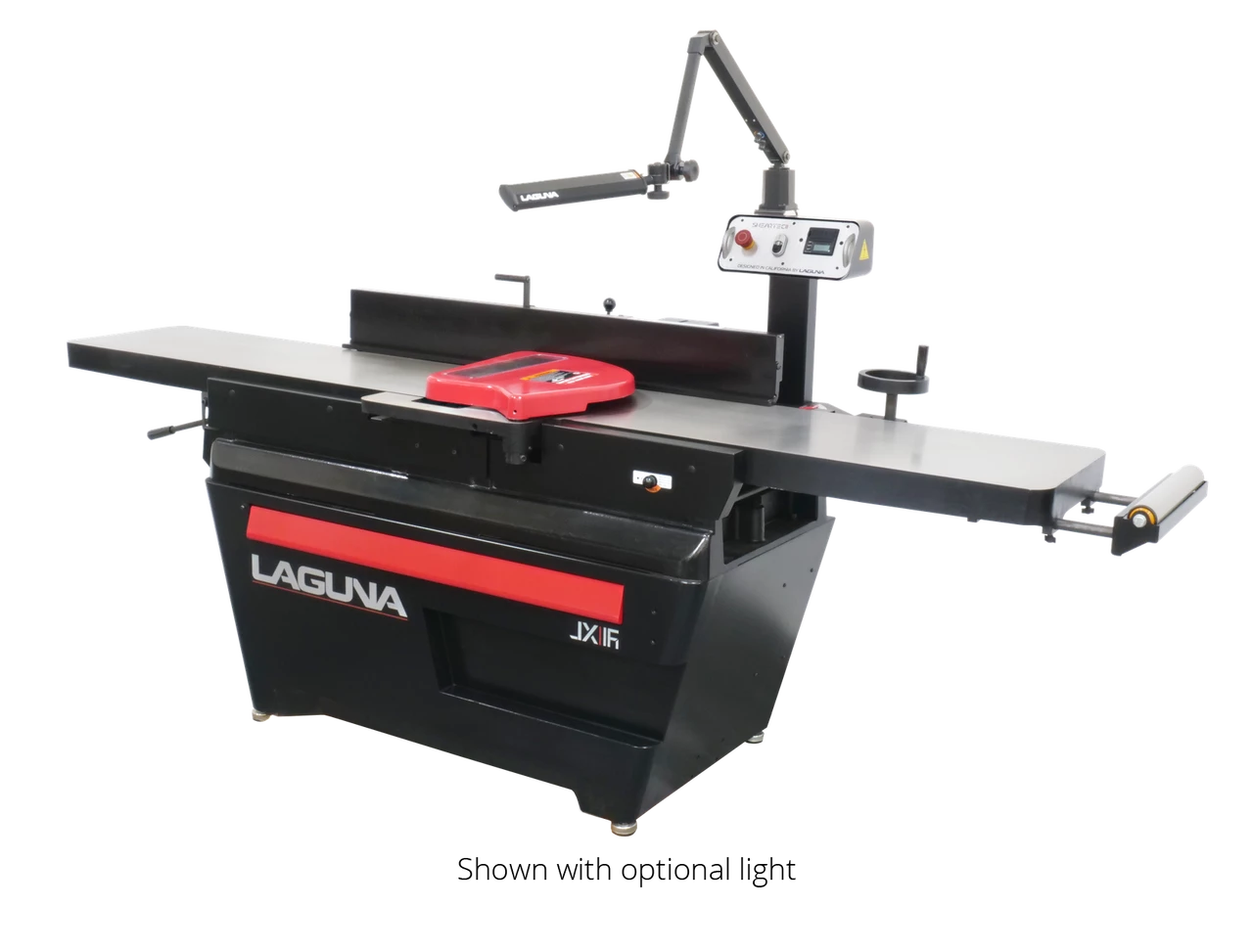

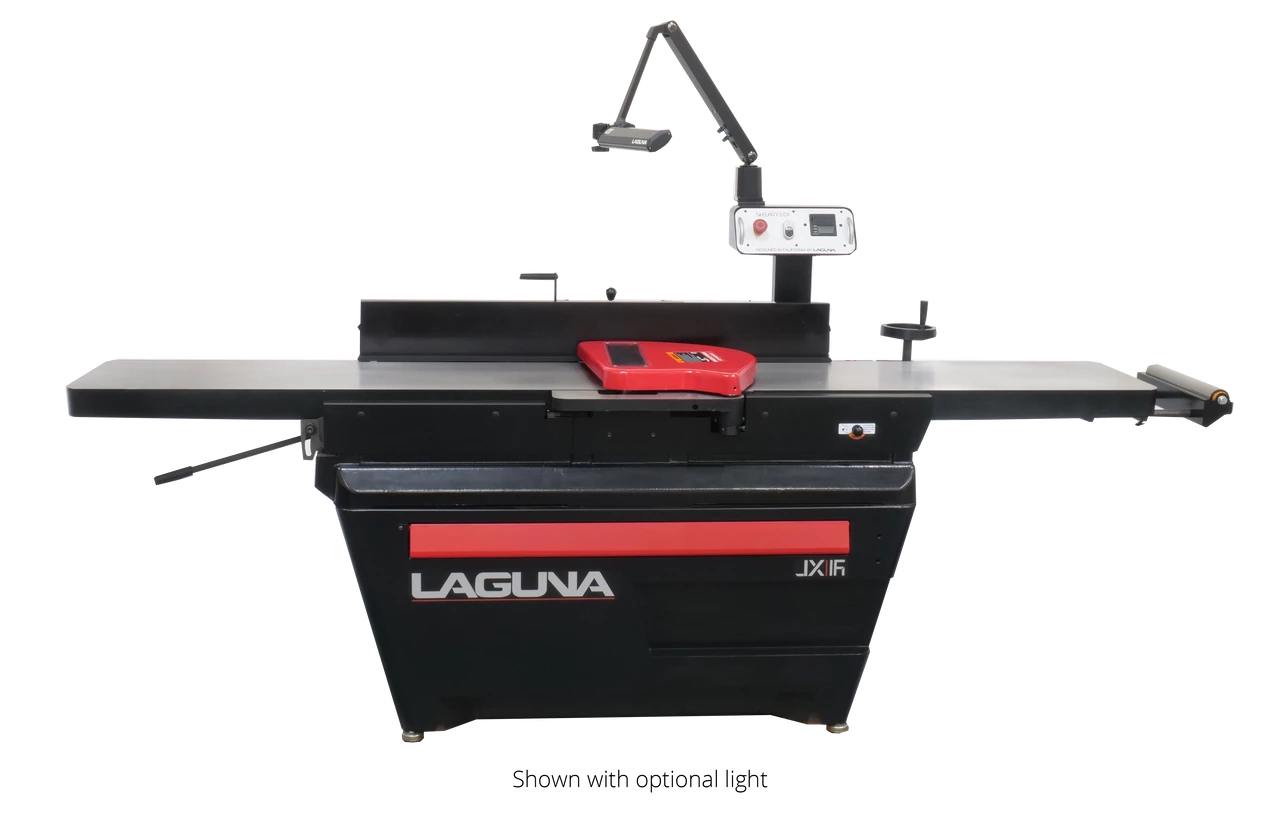

All-new for 2021, the Laguna JX|16 ShearTec II is loaded with premium features to make jointing safer and more enjoyable.

JX|16 ShearTec II Standard Features:

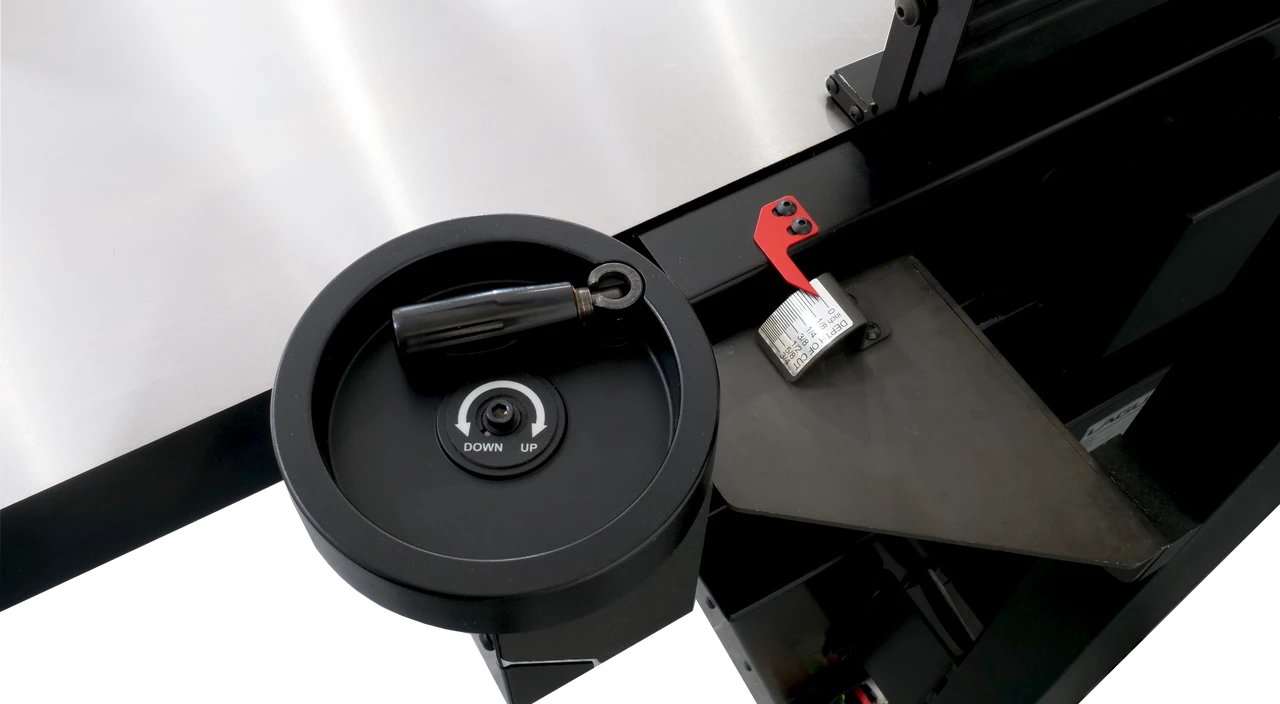

Parallelogram Table Adjustments – Table depth adjustments travel along an arc to keep the same distance to the cutterhead through its travel.

Emergency “Knee-Stop” – The new knee stop uses a body-length bar at knee height to shut off the JX jointer. This important safety feature allows the machine operator to stop the machine quickly at any position along the front of the machine while keeping hands on the workpiece

New Ergonomic Machine Body – The new JX Series machine body has been redesigned with a “toe-kick” to allow the user to position themself closer to the machine tables and to move safer and easier along the length of the machine

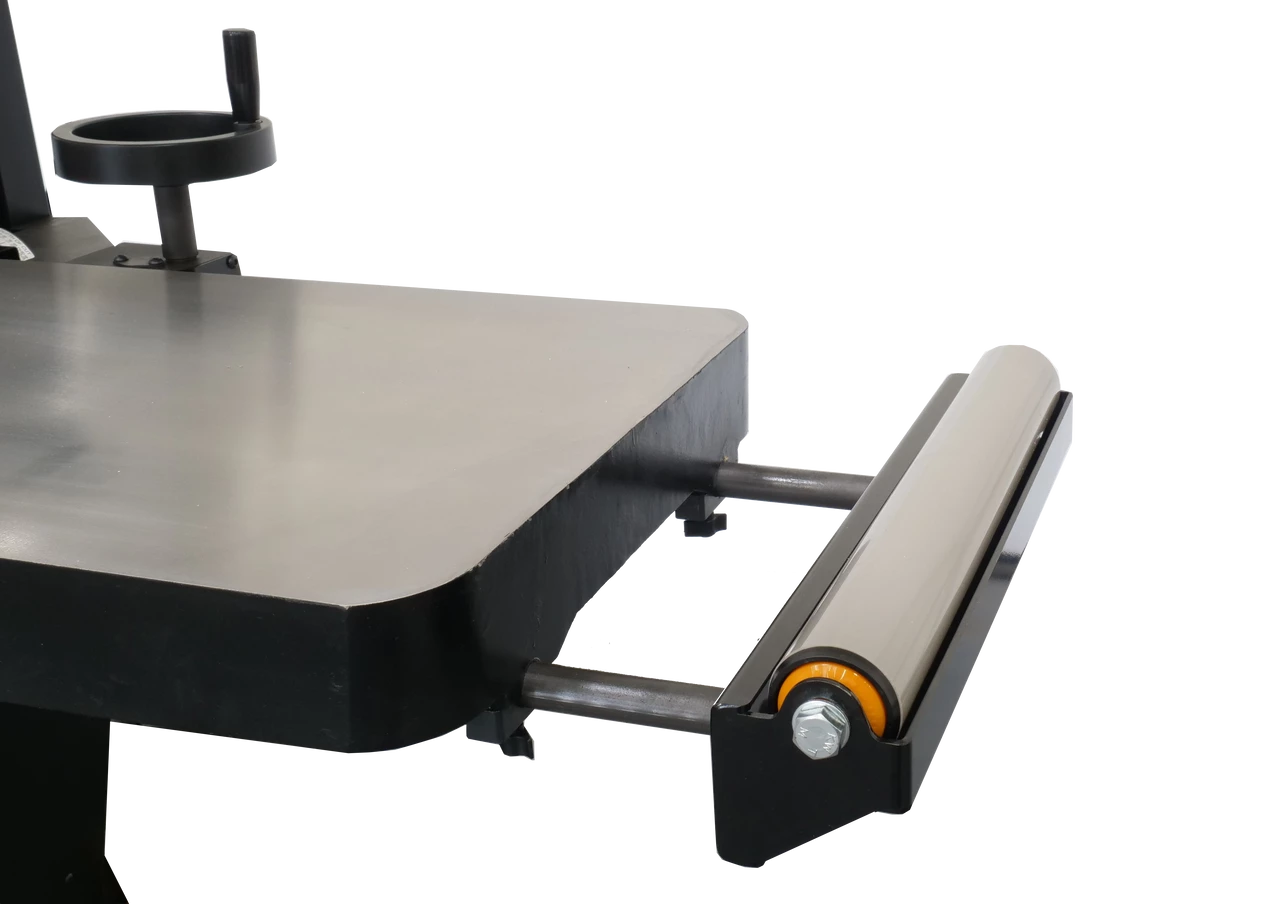

In-feed Support Roller – Infeed tables are now fitted with pull-out support roller to help support longer materials

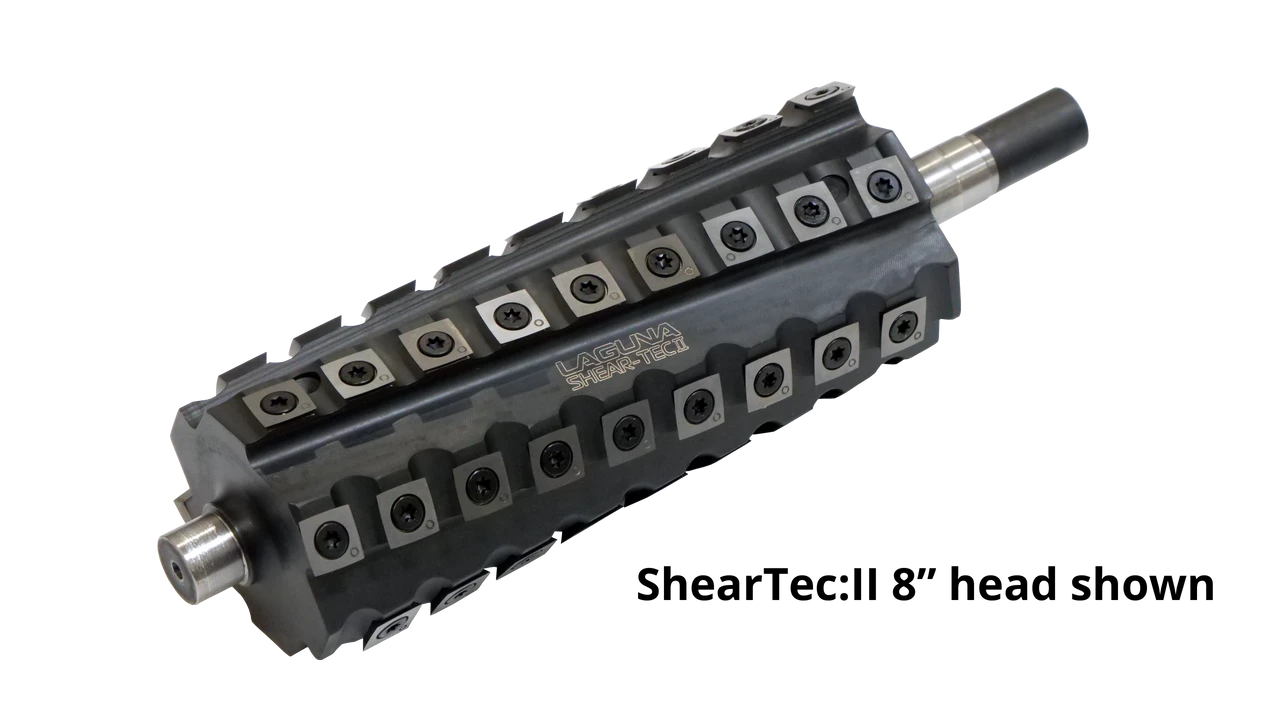

ShearTec II Cutterhead – The ShearTec II cuttherhead comes as standard equipment on JX|12 ShearTec II Jointer. The ShearTec II is a 6-row carbide insert cutterhead that produces a superior surface finish on all woods including challenging hardwoods. The ShearTec II knives and fasteners have a T-step design to maximize clamping force on the knives preventing knife cracking and chatter. The 4-sided carbide insert knives produce a shear cut for flawless results. The ShearTec II cutterhead has deep grooves that make the cutterhead very quiet and improve shaving ejection. The 4-sided knives can be rotated for a new cutting edge without the need for a knife setting jig

Deluxe Fence – 5-¾” fence with flip-down small fence for intricate work

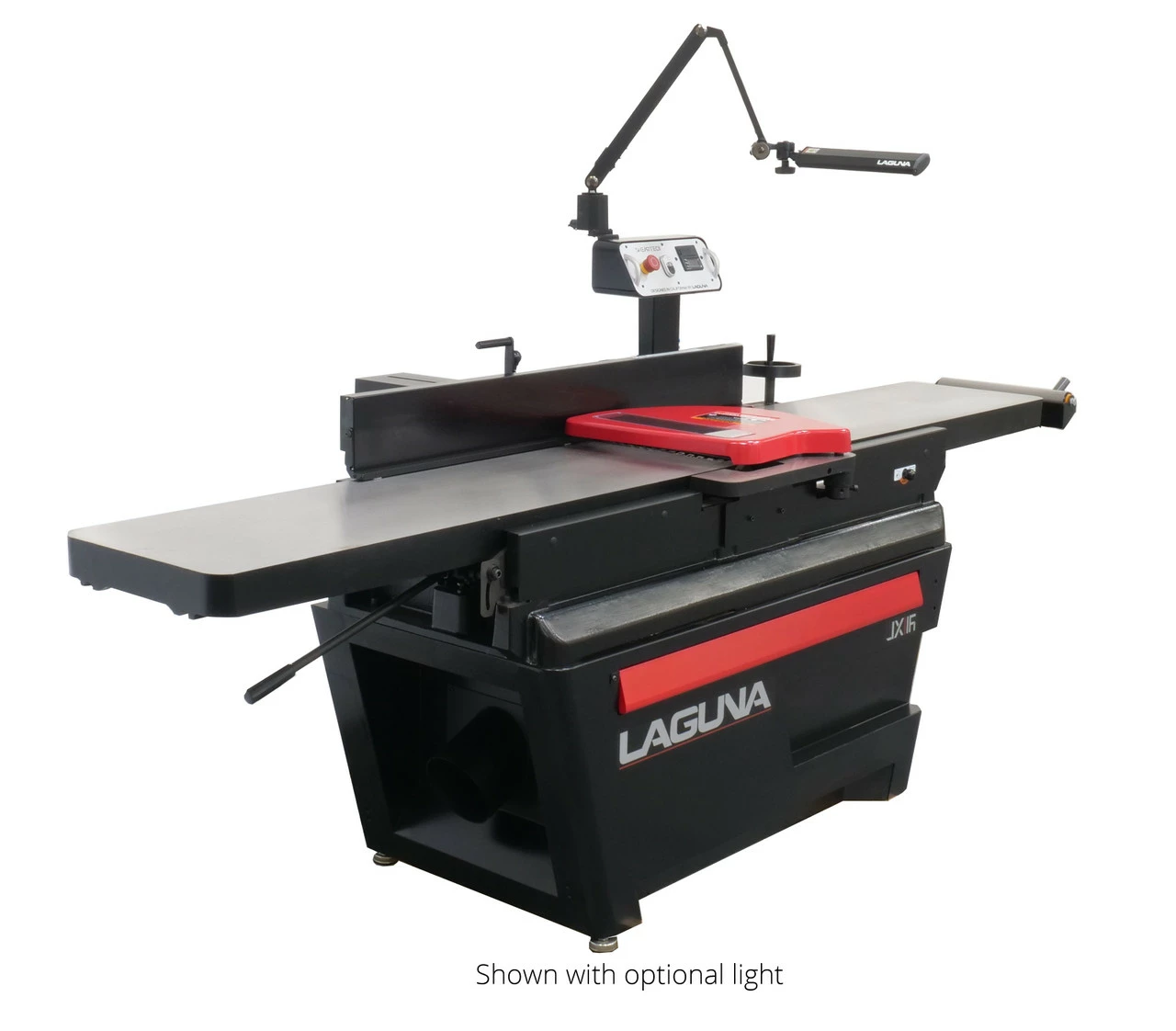

Worklight Ready – Built-in outlet and bracket for optional LED work light

Power-feeder Ready – Included bracket to mount optional power-feeder

Specifications:

Motor: 220V 7.5HP 3 Phase 60hz/20 Amp
CSA: Yes
Bed Size: 16″ x 100″
Infeed Table Pull-Out Extension: 10″
Rabbetting Capacity: 3/4″
Fence Size: 5-3/4″ x 47″ Aluminum Fence
Fence Tilt: ±45/90°
Max. Depth Of Cut: 1/8″
Table Height From Floor: 32″
Safety Bar Shut-Off: Yes
Wheels Built-In: No
Bracket To Mount Light: Yes
110V Outlet For Light: Yes
Bracket To Mount Feeder: Yes
Dust Port Diameter: 6″
Cutterhead Insert #: 90 x 4-Sided Carbide, 6 Row
Cutterhead RPM: 5500
Cutterhead Diameter: 3-7/8″
Bed Adjustment: Parallelogram
Dimensions Set Up (Approx): 103″ x 48″

Shipping Dimensions:

Dimensions Shipping: 105″ x 35″ x 48″
Net/Ship Weight: 488.97/568.8 Kg (1078/1254 Lbs.) (1 Box)
