Budget 🧨 NEXT WAVE CNC SHARK HD510 😉

***Please allow 2 to 4 weeks for delivery***

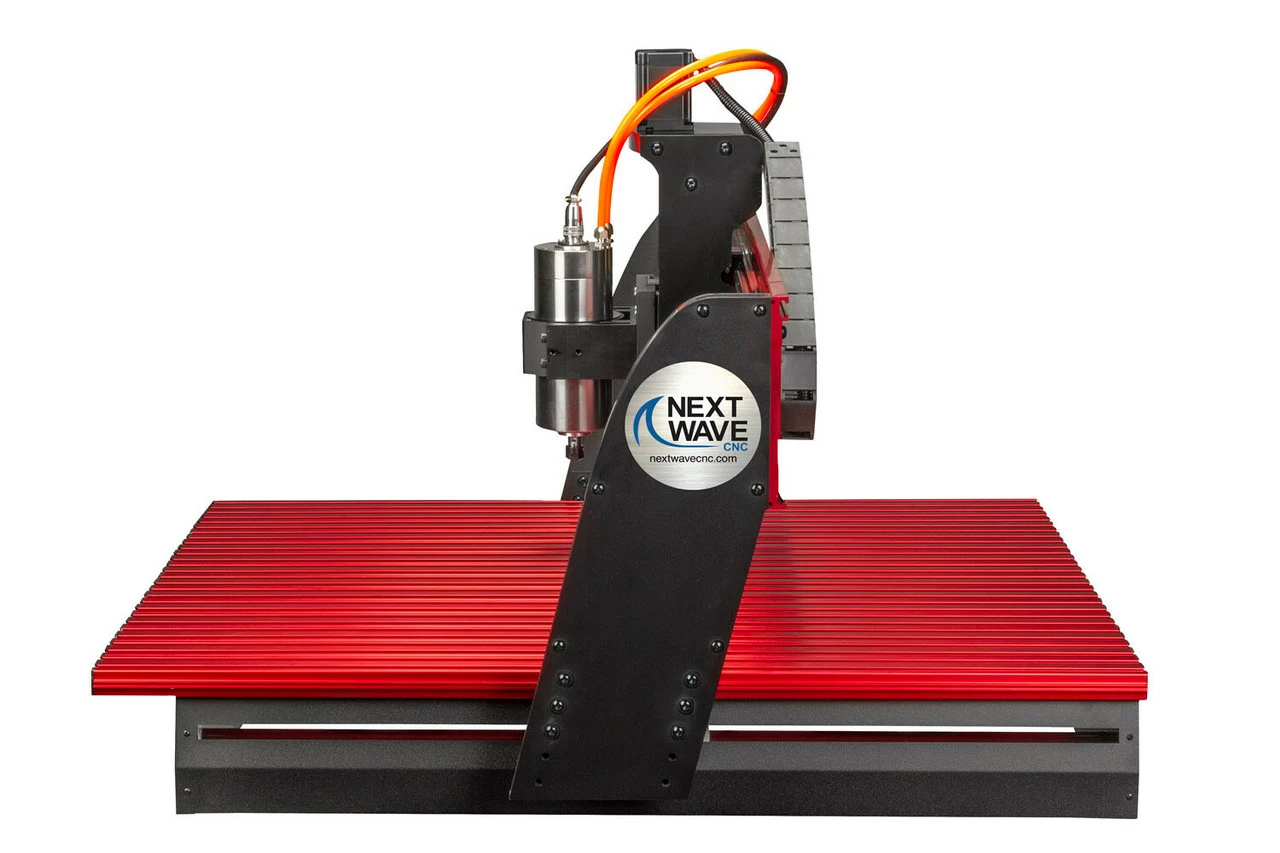

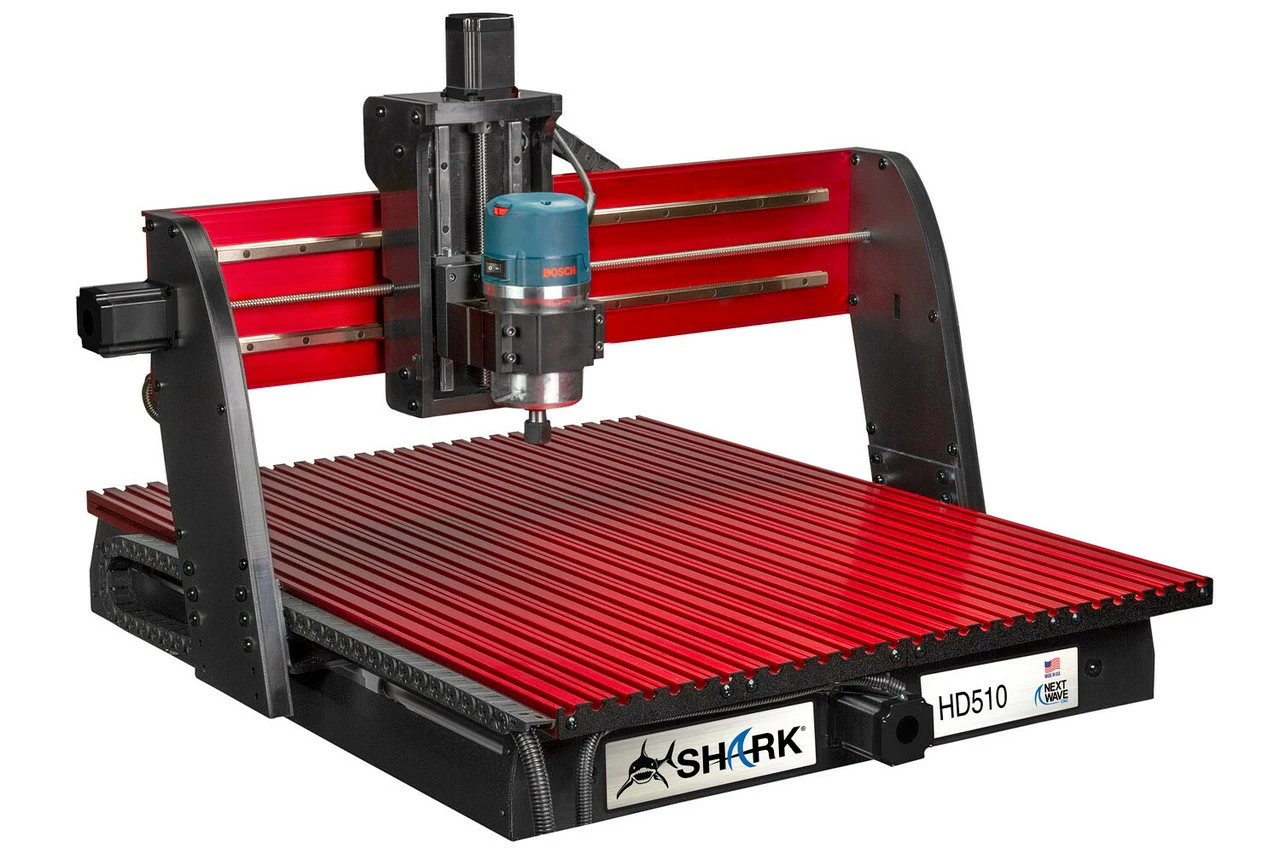

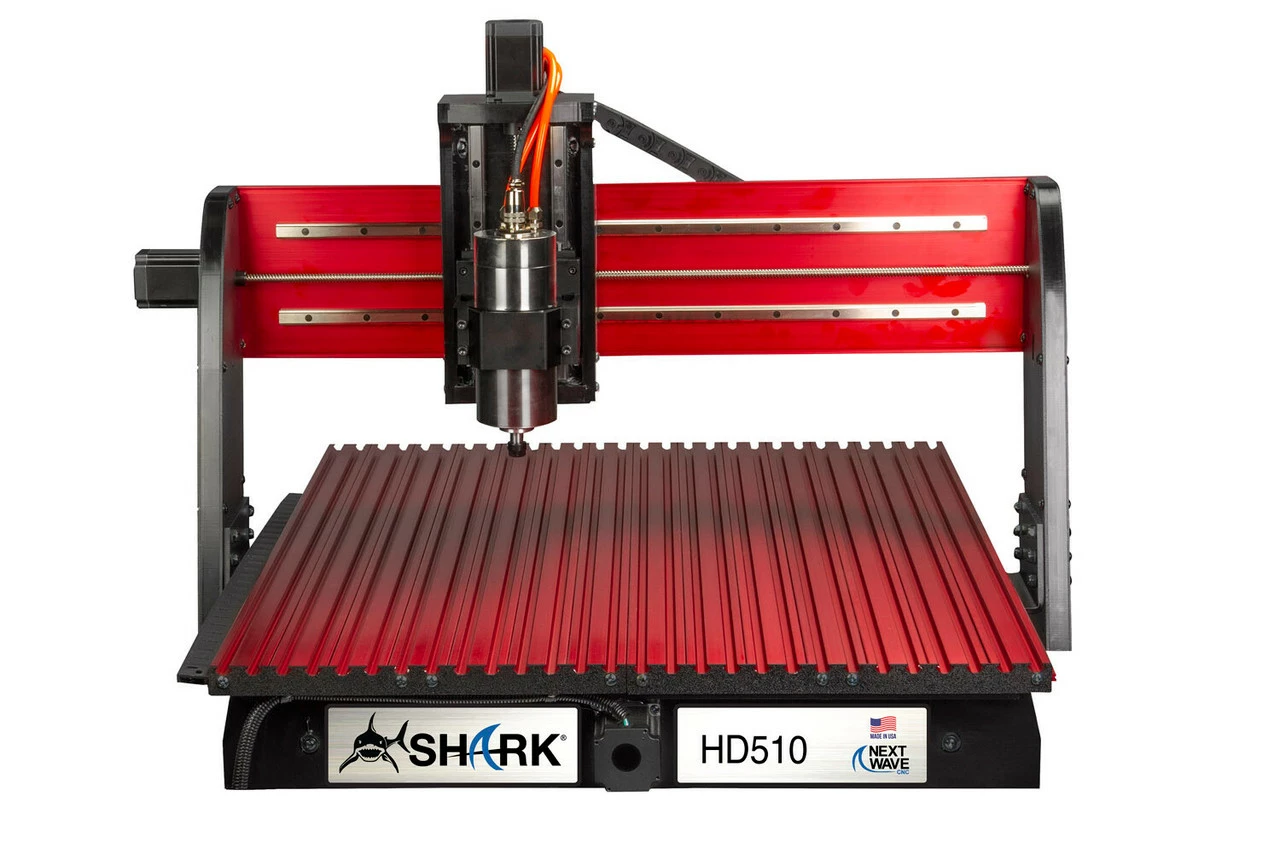

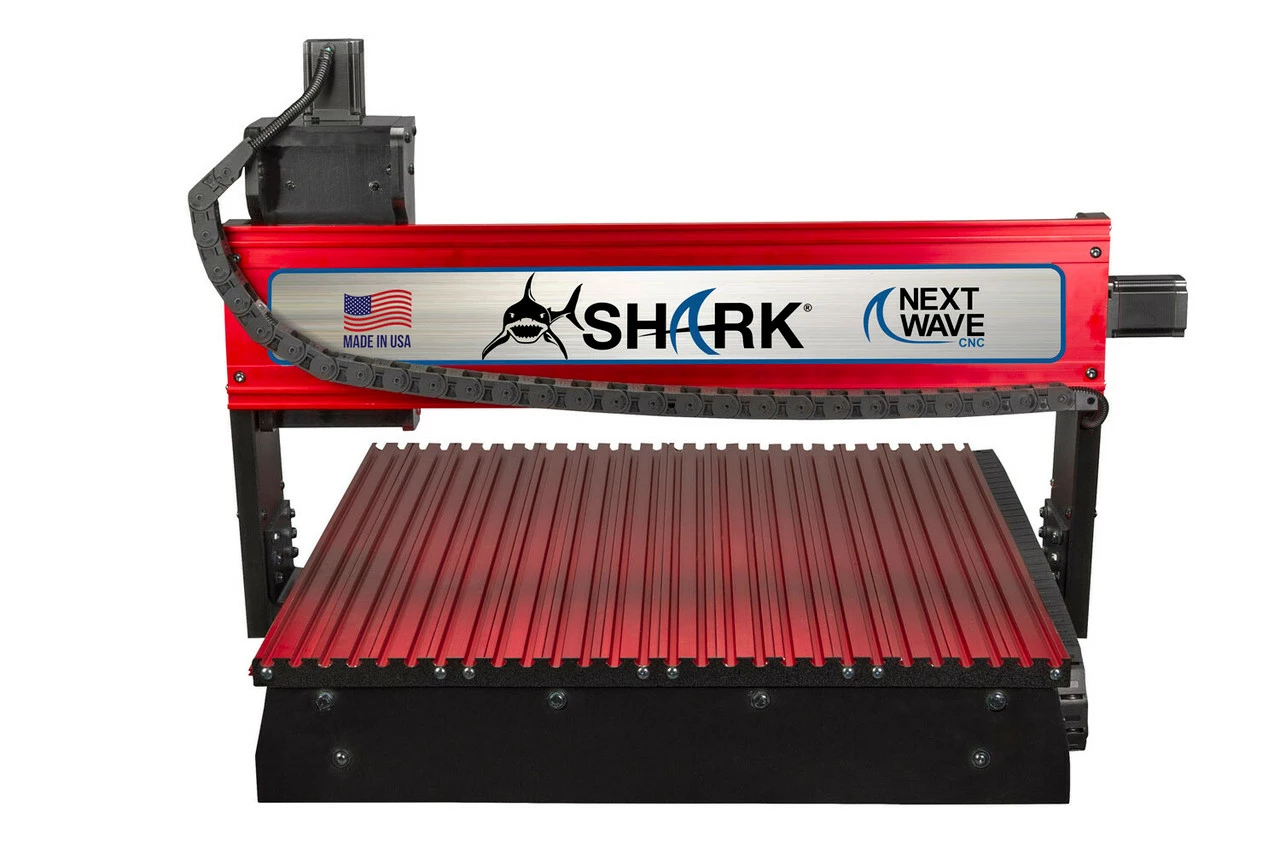

The Shark HD510 CNC is a must-have tool for any sized shop. The Shark HD510 will handle all your machining needs, whether it’s in a home shop environment or on the production floor. The HD510 comes standard with everything you need to quickly get it set up and running: the latest version of Vectric VCarve Desktop design software, a color pendant controller, 2 hold down clamps, carbide V-bit, and Next Wave CNC’s exclusive, patented Virtual Zero Unlimited software.

Built with industrial grade components, the Shark HD510 also features a heavy-duty aluminum and steel reinforced gantry, a new extruded aluminum router mount system, interlocking aluminum table, linear rails and guides on the gantry, and anti-backlash, wear-compensated lead screws on all axis. The Shark HD510 is the perfect tool for carving or machining a large variety of projects made from wood, soft metals, composites, or plastics. The Shark HD510 is fully compatible with Next Wave Automation’s extensive product line of additional accessories, such as laser, 4th axis, scanner, and more. The Shark HD510 is made in the USA, comes with a full one-year warranty and includes lifetime technical support so you can buy with confidence.
Virtual Zero Unlimited, this patented Next Wave exclusive software allows you to map the surface of your material by taking an unlimited number of reference points. The program then uses these points to auto adjust the G-code to conform to the actual surface of your material. This eliminates problems caused by a warped or bowed work piece and allows you to maintain a constant cutting depth on projects that other machines would not be able to handle.

Features

Colored touch screen pendant controller
Ready2Control, a computer control panel software.
Vector Art 3D Sampler Pack. $99 retail value
X & Y homing capability
Table dimensions: 28” x 36”
XYZ travel: 25” x 25” x 7”
Linear guides and bearings on the gantry
Anti-backlash, wear-compensated leadscrews on all axis
Interlocking rigid aluminum table with virtually unlimited clamp positioning
Aluminum gantry backplate for heavy machining capabilities.
Aluminum router mounting clamp
Steel encased gantry legs for increased rigidity
Automatic router on and off control
USB interface
Includes the latest edition of Vectrics Desktop design software

CNC Shark HD5 is fully compatible with the following routers (sold separately):

Bosch 1617 and 1618
Porter Cable 890 Series
DeWalt 610, 616, 618

Specifications

Voltage: 110/115 V
Overall dimensions: 36-1/4” W x 38” L x 24-1/2” H
Shipping dimensions:
Box 1 (Gantry): 14” L x 25” W x 24 ½ “H
Box 2 (Base): 8” L x 34” W x 40” H
Shiping weight:
Box 1: 30.85 kg (68 lbs.)
Box 2: 72.58 kg (106 lbs.)
Made is USA

Warranty: One-year warranty on parts and labor, special shipping exclusions apply
Lifetime technical support
