CXP02

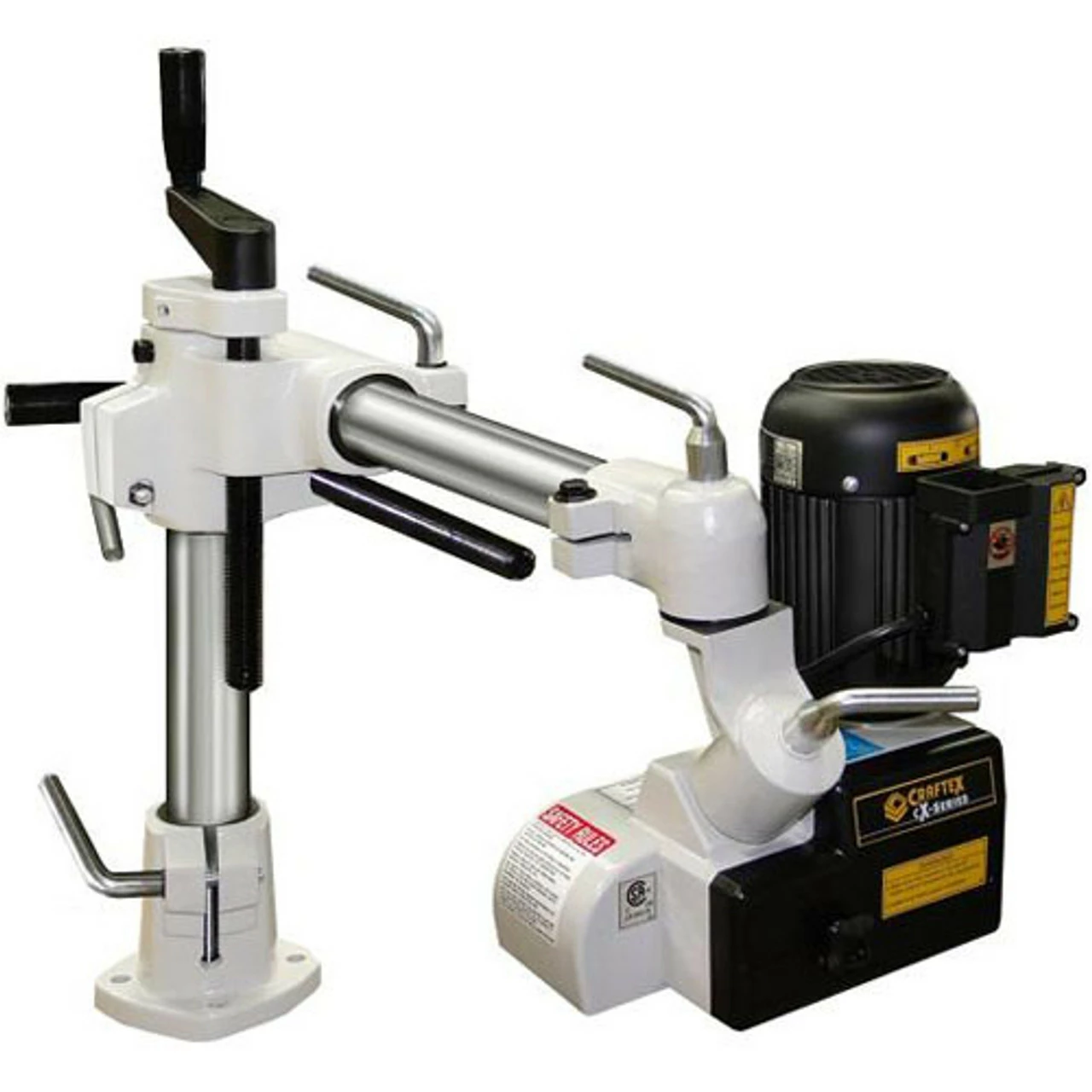

1/4-HP Four Speed Power Feeder – Craftex CX-Series

The CXP02 features a 1/4-HP, 110-Volt motor and three synthetic rubber feed rollers that eliminate the chore of feeding stock by hand and increases shop production.

This power feeder has four speeds in forward and reverse directions providing smooth feeding on all the materials. The horizontal and vertical columns and the elbow joint are fully adjustable and features lock levers to be locked in position. To ensure stability the CXP02 is provided with four pre-drilled holes on its base to allow mounting on the machine table surface.

This CX Series Power Feeder is made in an ISO 9001 factory and features a 3 Year Warranty.

FEATURES:

Four Speed Forward & Reverse Feed Direction

Cast Aluminum Housing Construction

Steel Horizontal & Vertical Columns Construction

Synthetic Rubber Feed Rollers

Gear Box Power Transfer

3-Years Warranty

SPECIFICATIONS:

Motor: 1/4-HP, 110-Volts, Single Phase, 60-Hz, 1660-RPM

Number of Speeds: Four

Feed Speeds: 20, 26, 33, 43 FPM

Swing: 360-Degree

Vertical Movement: 6-3/4”

Horizontal Movement: 9-3/4”

Number of Rollers: Three

Roller Width: 1-1/8”

Roller Diameter: 3-1/16”

Length/Width/Height: 34” x 13” x 24”

Weight: 75 lbs
