Discount ⭐ SHOP FOX 37IN. 3PHASE WIDE BELT SANDER 👍

***SPECIAL ORDER PLEASE ALLOW 6 TO 8 WEEKS FOR DELIVERY***

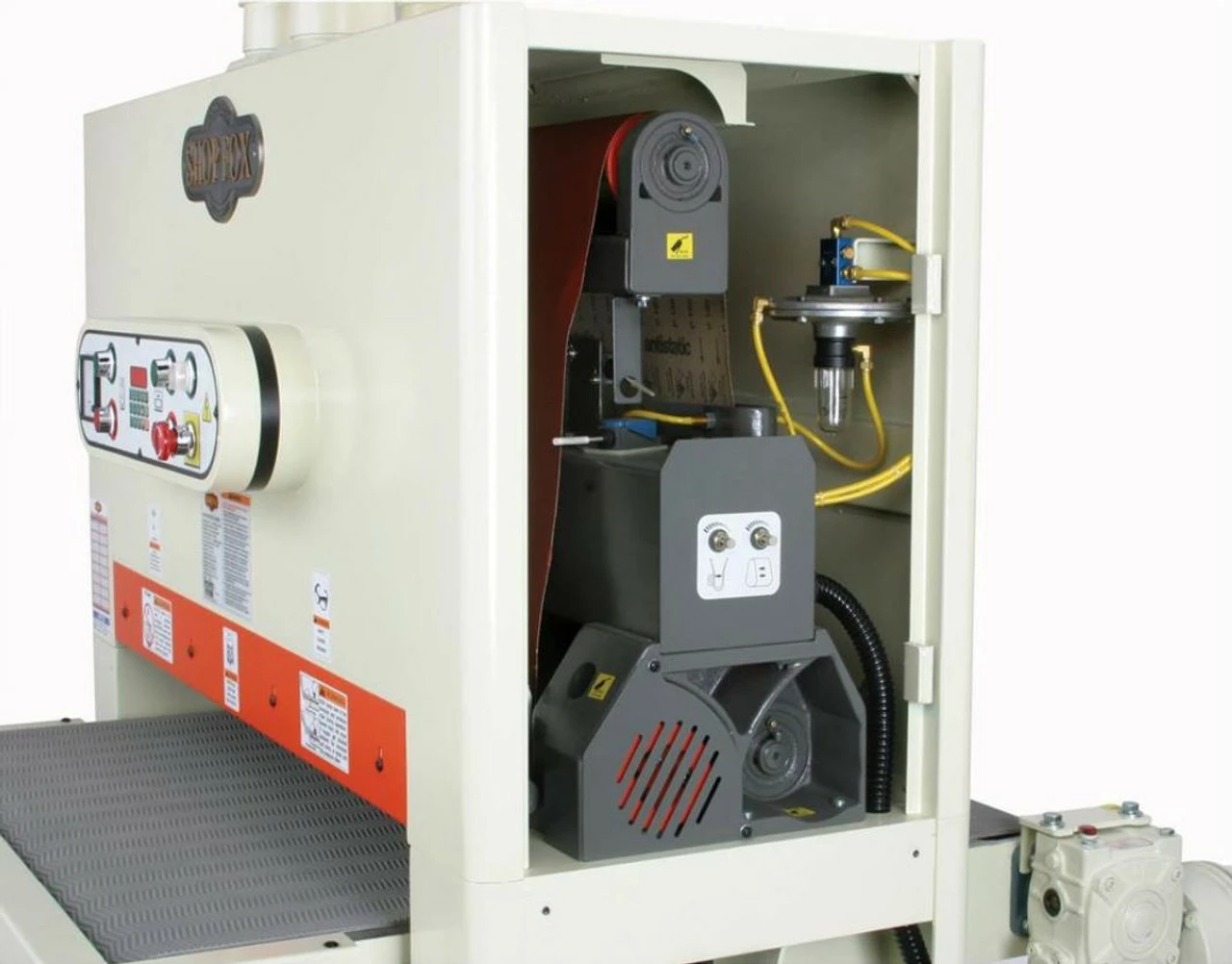

Door builders and cabinet shops will love the extra capacity of this 37″ wide-belt sander. With a 15 HP 3-phase sanding motor, this wide-belt is built for daily industrial use with features such as a heavy-duty steel cabinet, pneumatic belt oscillation, and a built-in air filter/regulator. The digital control pad automates table adjustments and is accurate to 0.005″. Also, the variable-speed conveyor, adjustable oscillation controls, and adjustable graphite/felt platen easily allow the operator to find the perfect combination of settings to achieve soft, smooth finishes on all types of wood. Certified to CSA and UL standards.

Features:

Built-in air filter/regulator
Independent motor control
Pneumatic belt tracking and tensioning
Digital sanding load meter
Emergency stop bar
Digital readout and control panel

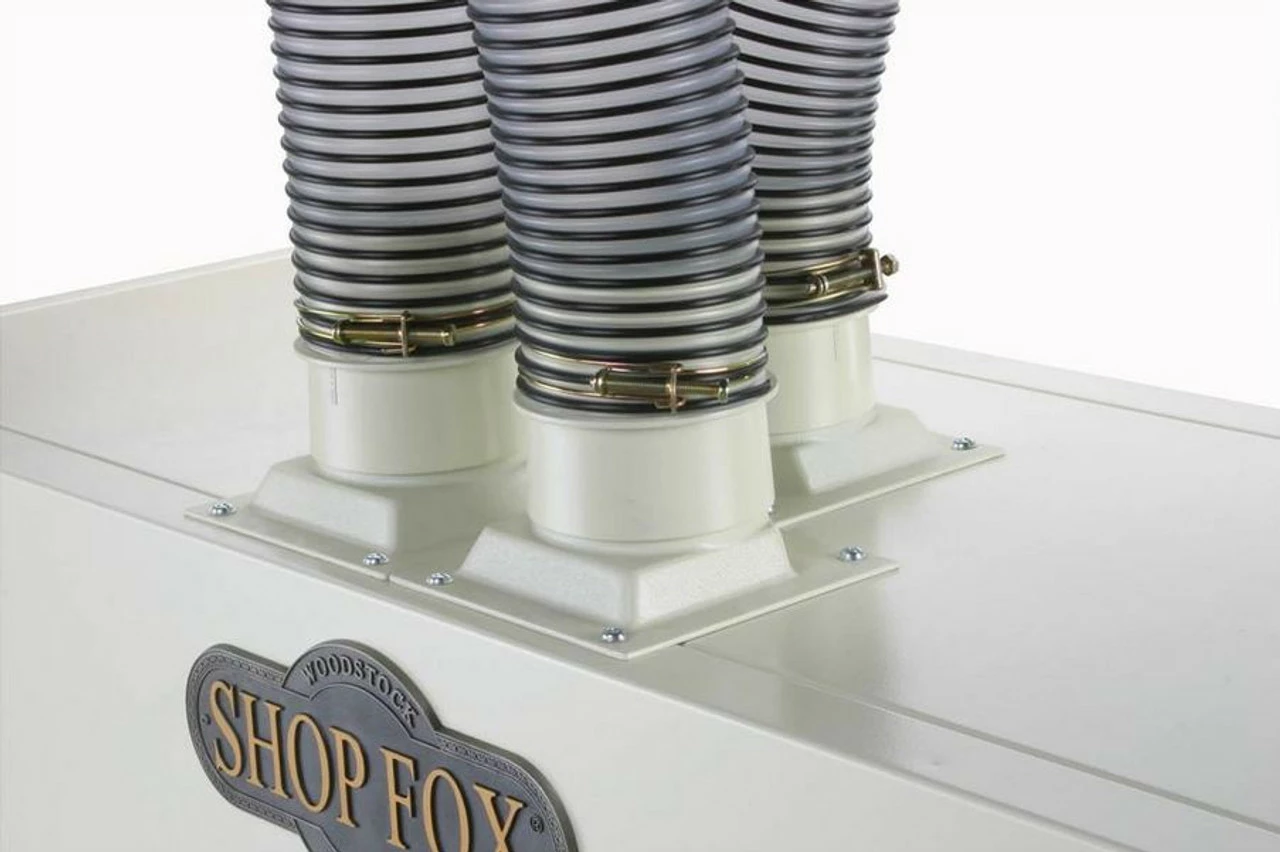

Three 4″ dust ports
Steel cabinet
Steel outfeed drum
Rubber infeed drum
Rubber pressure rollers
Micro-adjustable graphite/felt platen

Specifications

Sanding motor: 15 HP, 220V/440V*, 3-phase, 36A/18A, 1725 RPM
Conveyor motor: 1 HP, 220V/440V*, 3-phase, 3.4A/1.7A
Table elevation motor: 1/4 HP, 220V/440V*, 3-phase, 1.2A/0.6A, 1725 RPM
Max. board width: 36-1/2″
Max. board thickness: 6″
Min. board length: 14″
Air requirements: 75 PSI
Surface speed of drums: 2565 FPM
Conveyor feed rate: Variable, 15-49 FPM
CSA certified meeting CSA C22.2 #105-1953 and UL 987-7 standards
Overall size: 52-1/8″W x 69-5/8″H x 49-3/8″D
Approximate shipping weight: 816.5 Kg (1800 lbs.)
*440V operation requires purchase of additional components
