Discount ⌛ SUPERMAX 37 X 2 DOUBLE DRUM WITH CASTERS SUPMX937003 🛒

Special Order, allow 3 to 4 weeks delivery if in stock with Laguna. Check with a Busy Bee Team member for accurate stock status.

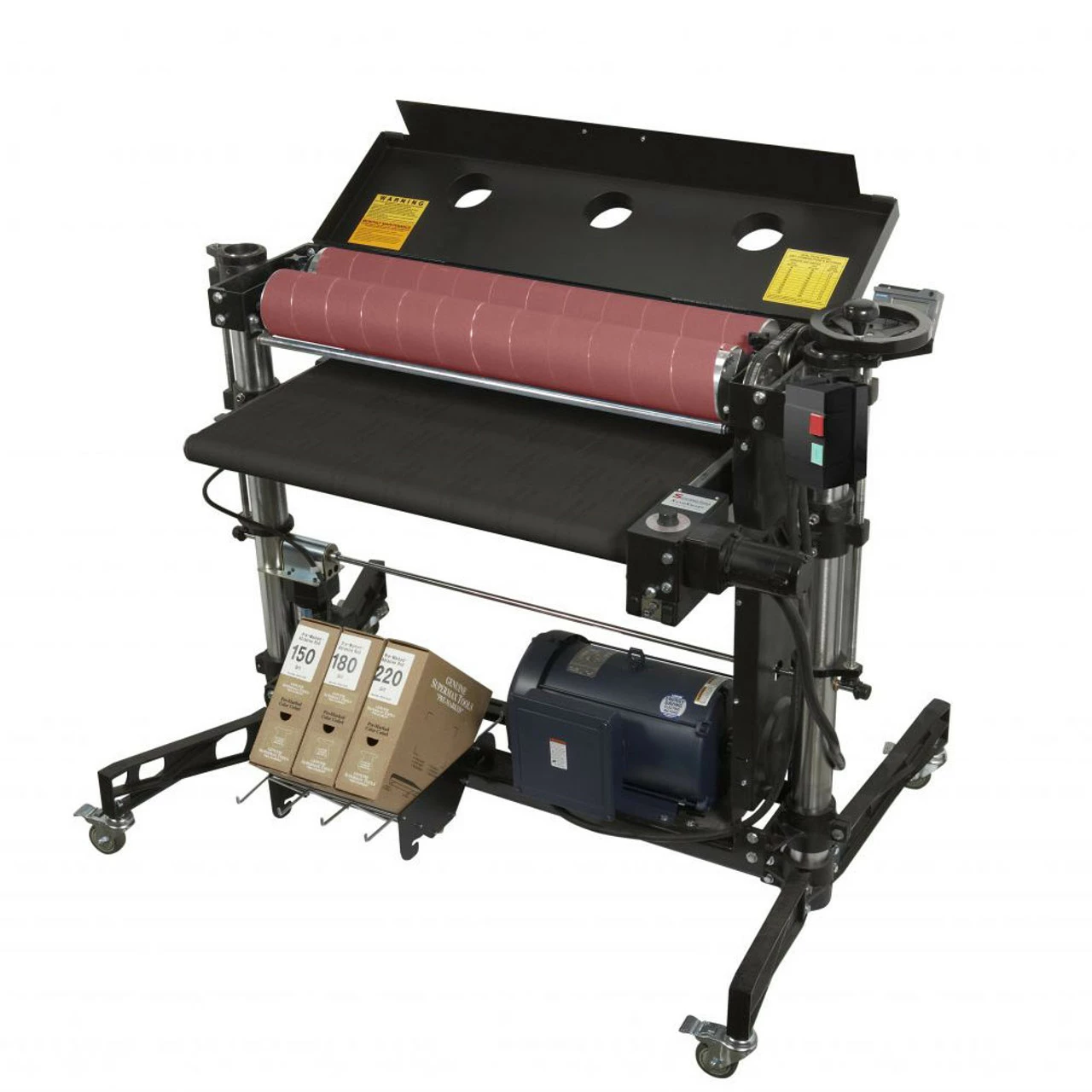

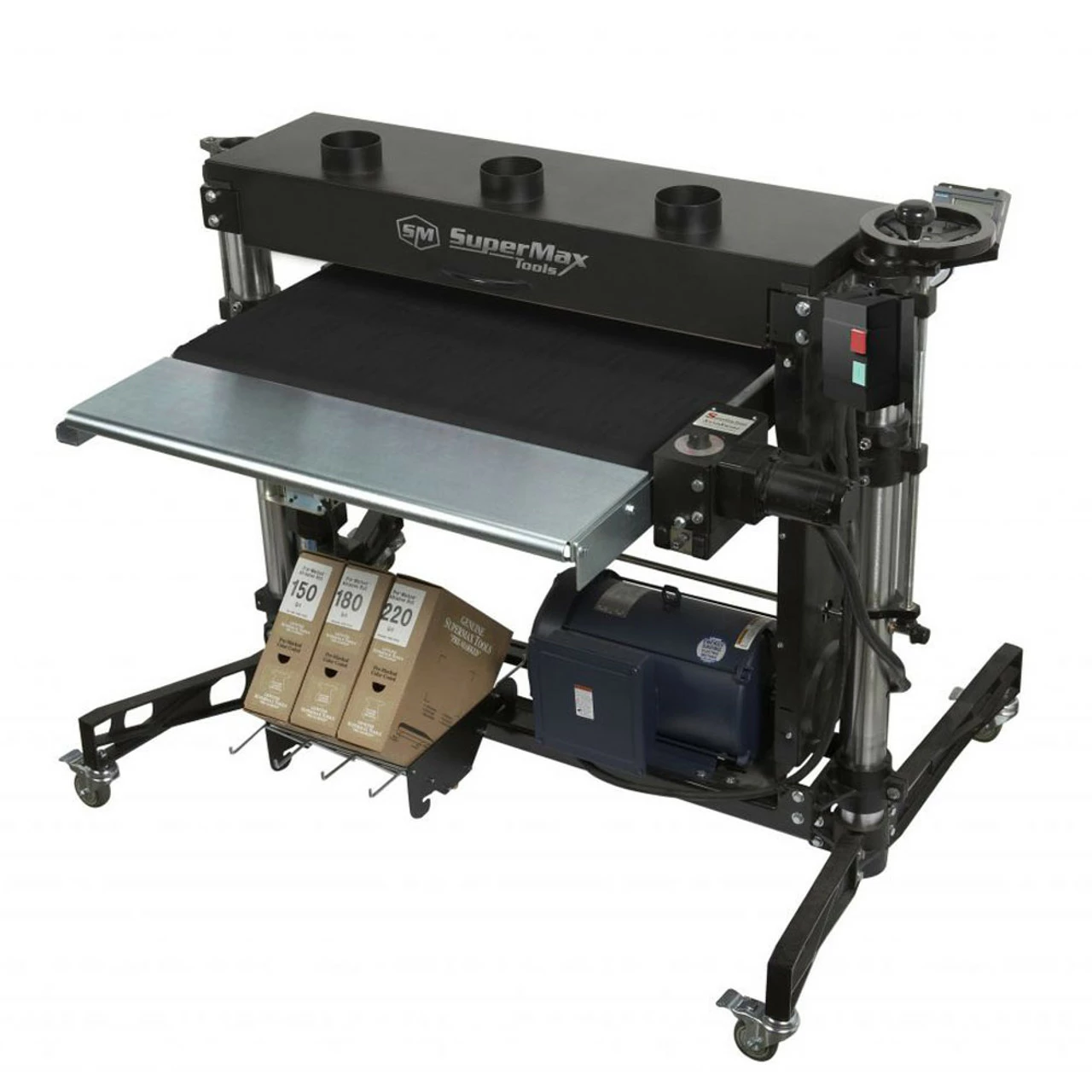

Double Drum Sander, 220V, 5HP, 1PH – (includes casters). Sand two grits in a single pass with a 37×2 Double Drum Sander. Featuring INTELLISAND Technology and a 5 HP motor, you can significantly reduce the amount of time you spend sanding. The 37×2 Double Drum Sander features INTELLISAND Technology that auto-regulates the conveyor based on load, preventing burning, gouging, and damaging stock. The machine comes standard on an open-column base and features a 5 HP motor with Single Phase power. Features: INTELLISAND Technology: Automatically adjusts conveyor speed based on load. Prevents gouging, damaging, or burning stock. Provides consistent finish even with varying grain pattern and density. Greatly increases abrasive planing and dimensioning speed. Flatness Guarantee: Precision-flattened steel conveyor bed reinforced with four steel cross sections for no “flex” in conveyor, guaranteeing flatness to less than .010″ across the width of the sander. Abrasive conveyor belt offers the best grip for raw wood, giving you the ability to accommodate stock that is much shorter or thinner. Patented Abrasive Attachment System effectively tensions the abrasive wraps, preventing loose abrasive and overlap. Easiest access to the abrasive fastening system of any drum sander! Machine design includes additional space around abrasive, eliminating the need for special tools. The self-cooling drum prevents overheating and extends abrasive life.

Specifications:

Sanding Capacity:
Maximum Width (in): 37.
Minimum Length (in): 3-1/2.
Maximum Thickness (in): 25″
Minimum Thickness (in): 1/32.
Dimensions HxWxD (in): 43 x 46 x 31. 37″
Drum (in): (extruded aluminum):5 x 25. 37″
Drum speed: 1740 RPM.
Dust Hood: (Steel hood, hinged at back. 25”
Vacuum Port: (3) – 4″ vacuum ports, min. 1800 CFM recommended.
Ball bearings (1”): 4, sealed and permanently lubricated.
Conveyor Motor: 220 in.-lb. torque, direct drive D.C motor, ranged variable, 0-15 FPM
Drive Motor (TEFC): 5 HP.
Power Requirements: 208-230V, 60HZ; 1 Ph, 30 amp service; 3 Ph 20 amp service
Shipping Weight (lbs): 37″ model: 238.13 Kgs (525 lbs)
